recordPump_DN40

Pump with head 1 to 12m and 21m^3/h volume flow

Extends from PumpBaseRecord.

Information

Pump for nominal pipe diameter of 40 mm, pump head range between 1 m and 12 m and maximum volume flow rate of 21 m³/h.

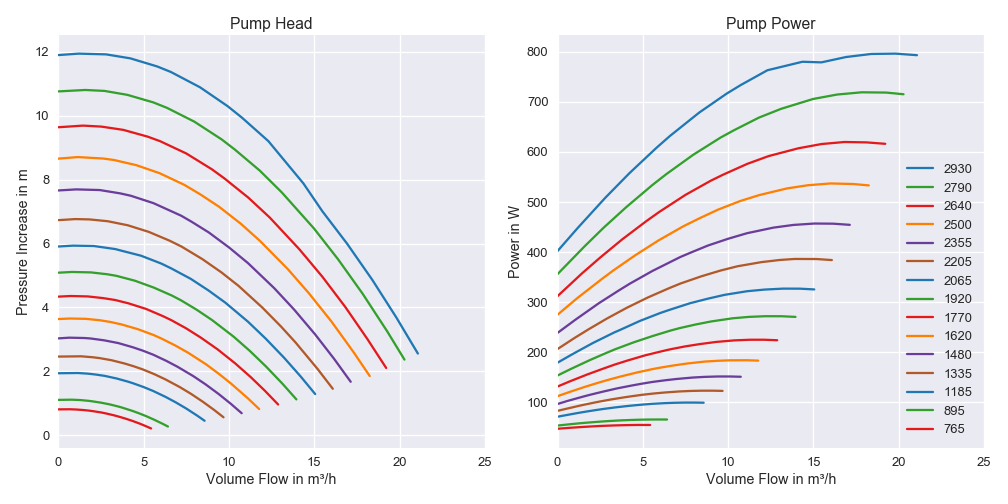

Pump Characterisistcs

cHQN:

0.00000e+00, 0.00000e+00, 1.38228e-06;

0.00000e+00, 2.99931e-05, 0.00000e+00;

-2.43139e-02, 0.00000e+00, 0.00000e+00

cPQN:

7.76957e+00, 7.17032e-02, -5.12390e-05, 3.36215e-08, -3.02196e-12;

0.00000e+00, 0.00000e+00, 4.75172e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, -2.61724e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-9.99727e-03, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00
