recordPump_DN40_H10

Pump with head 10m and 21m^3/h volume flow

Extends from PumpBaseRecord.

Information

Pump for nominal pipe diameter of 40 mm, pump head 10 m and maximum volume flow rate of 21 m³/h.

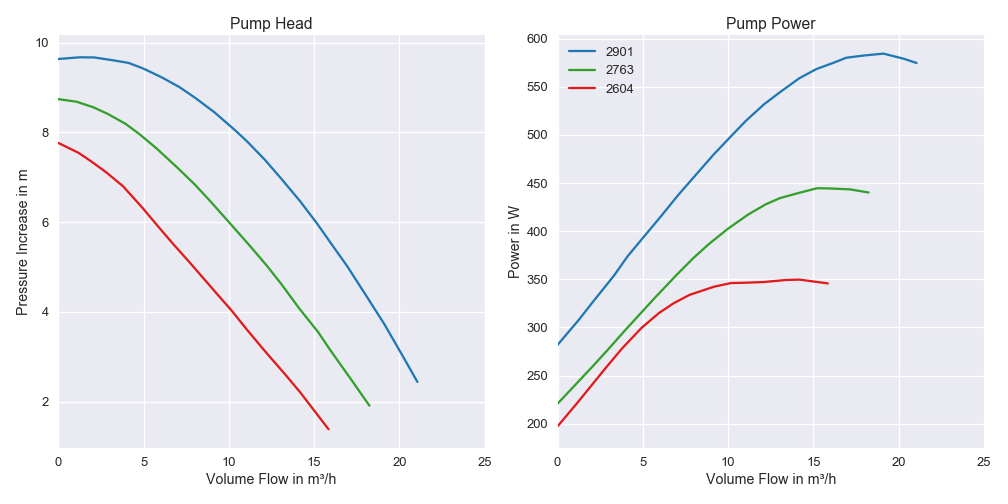

Pump Characterisistcs

cHQN:

0.00000e+00, 0.00000e+00, 1.14499e-06;

0.00000e+00, 4.66276e-05, 0.00000e+00;

-1.99893e-02, 0.00000e+00, 0.00000e+00

cPQN:

-6.16143e-03, -3.78851e+00, 4.98972e-03, -2.11796e-06, 2.96335e-10;

0.00000e+00, 0.00000e+00, 3.30189e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 2.03751e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-4.40060e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00
