recordPump_DN50_H1_38

Pump with head 1 to 38m and 52.14m^3/h volume flow

Extends from PumpBaseRecord.

Information

Pump for nominal pipe diameter of 50 mm, pump head range between 1 m and 38 m and maximum volume flow rate of 52.14 m³/h.

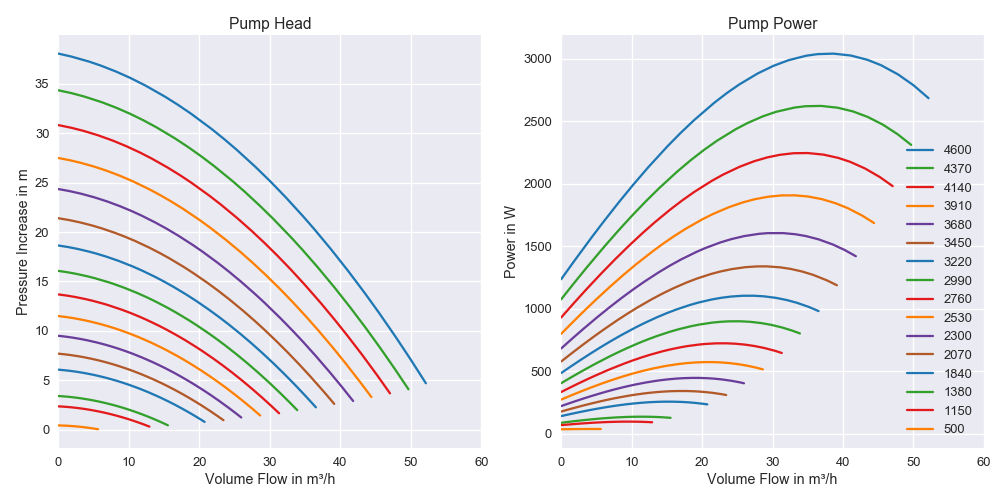

Pump Characterisistcs

cHQN:

0.00000e+00, 0.00000e+00, 1.79741e-06;

0.00000e+00, -3.13331e-05, 0.00000e+00;

-9.49292e-03, 0.00000e+00, 0.00000e+00

cPQN:

2.12113e+01, 2.29734e-02, 2.74104e-06, 1.08557e-08, -1.33157e-14;

0.00000e+00, 0.00000e+00, 3.76420e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, -9.60714e-05, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-1.05943e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00
