modelTwoPortInductance
Model of an inductance with two electrical ports
Extends from AixLib.Electrical.AC.ThreePhasesUnbalanced.Interfaces.TwoPort.
Information
Inductive model that connects two AC three-phase unbalanced interfaces. This model can be used to represent a cable in a three-phase unbalanced AC system.

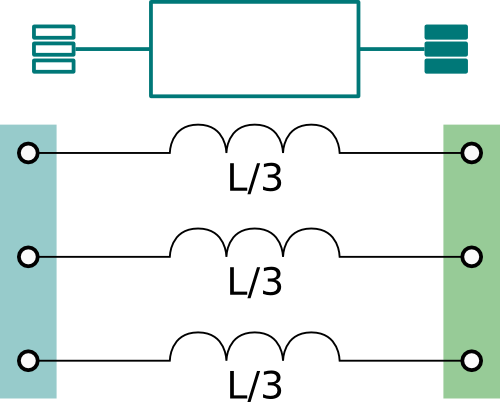

The model represents the lumped inductances as shown in the figure above. Assuming that the inductance L is the overall inductance of the cable, each line has an inductance equal to L/3.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Inductance | L | Inductance |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| OnePhase.Lines.TwoPortInductance | phase1 | Inductance line 1 | |
| OnePhase.Lines.TwoPortInductance | phase2 | Inductance line 2 | |
| OnePhase.Lines.TwoPortInductance | phase3 | Inductance line 3 |
Revisions
-
October 3, 2014, by Marco Bonvini:
Added model and documentation.
