modelTwoPortResistance

Model of a resistance with two electrical ports

Extends from Modelica.Electrical.Analog.Interfaces.ConditionalHeatPort, AixLib.Electrical.AC.ThreePhasesUnbalanced.Interfaces.TwoPort.

Information

Resistive model that connects two AC three-phase unbalanced interfaces. This model can be used to represent a cable in a three-phase unbalanced AC system.

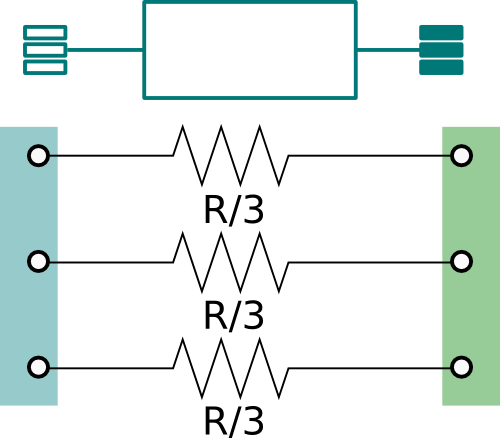

The model represents the lumped resistance as shown in the figure above. Assuming that the resistance R is the overall resistance of the cable, each line has a resistance equal to R/3.

Parameters

TypeNameDefaultDescription
Modelica.Units.SI.TemperatureT_ref298.15Reference temperature
Modelica.Units.SI.TemperatureM507.65Temperature constant (R_actual = R*(M + T_heatPort)/(M + T_ref))
Modelica.Units.SI.ResistanceRResistance at temperature T_ref

Components

TypeNameDefaultDescription
OnePhase.Lines.TwoPortResistancephase1Resistance line 1
OnePhase.Lines.TwoPortResistancephase2Resistance line 2
OnePhase.Lines.TwoPortResistancephase3Resistance line 3

Revisions

  • January 14, 2015, by Marco Bonvini:
    Added equation that represents Joule losses
  • October 3, 2014, by Marco Bonvini:
    Added model and documentation.
