modelPressureDropPH
Calculates the pressure drop in a radiator according to manufacturer data
Extends from Modelica.Fluid.Interfaces.PartialTwoPortTransport.
Information
Overview
Model for calculating the pressure drop.
Concept
The pressure drop is calculated according to the following equation [1].

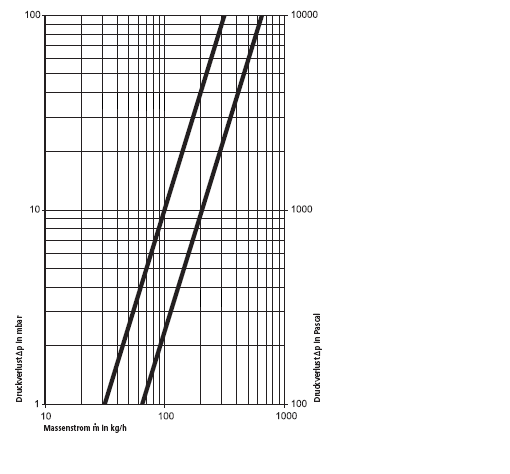

In order to determine K, manufacturer data is used and :
With the help onf the Matlab Curve Fit Toolbox a curve y = K*x^2 is fitted through several selected points.
Reference
Source:
- [1] Ross, Hans: "Hydraulik der Wasserheizung", Oldenbourg Indunstrieverlag GmbH, 2002.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | m | 2131 | Pressure drop coefficient, delta_p[Pa] = tubeLength*m*m_flow[kg/s]^n |
| Real | n | 1.7 | Pressure drop exponent, delta_p[Pa] = tubeLength*m*m_flow[kg/s]^n |
| Modelica.Units.SI.Length | tubeLength | 10 | total length of tube |
Revisions
-
June 15, 2017 by Tobias Blacha:
Moved into AixLib -
June 10, 2011 by Ana Constantin:
Implemented.
