modelPressureDropRadiator

Calculates the pressure drop in a radiator according to manufacturer data

Extends from AixLib.Fluid.Interfaces.PartialTwoPortTransport.

Information

Overview

Calculates the pressure drop in a radiator according to manufacturer data

Concept

The pressure drop is calculated according to the following equation [1].

Delta_P = K*m_flow^2

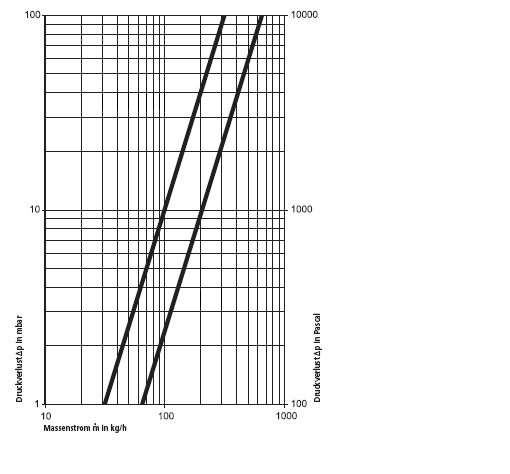

In order to determine K, manufacturer data is used and :

Pressure Drop

With the help of the Matlab Curve Fit Toolbox a curve y = K*x^2 is fitted through several selected points.

References

[1] Ross, Hans: "Hydraulik der Wasserheizung", Oldenbourg Industrieverlag GmbH, 2002.

Parameters

TypeNameDefaultDescription
RealPDPressure drop coefficient, delta_p[Pa] = PD*m_flow[kg/s]^2

Revisions

  • October, 2016  by Peter Remmen:
    Transfer to AixLib.
  • October 7, 2013  by Ole Odendahl:
    Formatted documentation appropriately
  • June 10, 2011  by Ana Constantin:
    Implemented.
