modelBedroom_VoWo
Bedroom from the VoWo appartment
Information
Overview
Model for the bedroom.
Concept

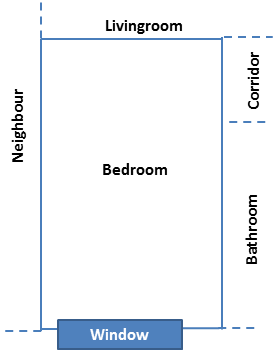

The following figure presents the room's layout:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Construction parameters | |||
| Integer | TMC | 1 | Thermal Mass Class |
| Integer | TIR | 4 | Thermal Insulation Regulation |
| Floor | |||
| Integer | Floor | 1 | Floor |
| Outer wall properties | |||
| Real | solar_absorptance_OW | 0.7 | Solar absoptance outer walls |
| Integer | calcMethod | 1 | Calculation method for convective heat transfer coefficient |
| Initial temperatures | |||
| Modelica.Units.SI.Temperature | T0_air | 295.15 | Air |
| Modelica.Units.SI.Temperature | T0_OW | 295.15 | OW |
| Modelica.Units.SI.Temperature | T0_IWLivingroom | 295.15 | IWLivingroom |
| Modelica.Units.SI.Temperature | T0_IWCorridor | 290.15 | IWCorridor |
| Modelica.Units.SI.Temperature | T0_IWBathroom | 297.15 | IWBathroom |
| Modelica.Units.SI.Temperature | T0_IWNeighbour | 295.15 | IWNeighbour |
| Modelica.Units.SI.Temperature | T0_CE | 295.35 | Ceiling |
| Modelica.Units.SI.Temperature | T0_FL | 294.95 | Floor |
| Sunblind | |||
| Boolean | use_sunblind | false | Will sunblind become active automatically? |
| Real | ratioSunblind | 0.8 | Sunblind factor. 1 means total blocking of irradiation, 0 no sunblind |
| Modelica.Units.SI.Irradiance | solIrrThreshold | 350 | Threshold for global solar irradiation on this surface to enable sunblinding (see also TOutAirLimit) |
| Modelica.Units.SI.Temperature | TOutAirLimit | Temperature at which sunblind closes (see also solIrrThreshold) | |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Wall_Livingroom | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Wall_Neighbour | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Wall_Bath | ||
| AixLib.ThermalZones.HighOrder.Components.DryAir.Airload | airload | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | outsideWall | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Wall_Ceiling | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Wall_Floor | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Wall_Corridor | ||
| AixLib.ThermalZones.HighOrder.Components.DryAir.InfiltrationRate_DIN12831 | infiltrationRate | ||
| AixLib.Utilities.Interfaces.SolarRad_in | SolarRadiation_NW | ||
| Modelica.Blocks.Interfaces.RealInput | WindSpeedPort | ||
| Modelica.Blocks.Interfaces.RealInput | AirExchangePort | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermOutside | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermLivingroom | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermCorridor | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermBath | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermCeiling | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermFloor | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermNeigbour | ||
| AixLib.Utilities.Interfaces.RadPort | StarRoom | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | ThermRoom | ||
| AixLib.Utilities.Interfaces.Adaptors.ConvRadToCombPort | thermStar_Demux | ||
| AixLib.ThermalZones.HighOrder.Components.DryAir.VarAirExchange | NaturalVentilation |
Contents
| Name | Description |
|---|---|
| WindowModel | |
| CorrSolarGainWin |
Revisions
-
April 18, 2014 by Ana Constantin:
Added documentation -
August 16, 2011 by Ana Constantin:
Implemented
