modelOw1IwL2IwS1Lf1At1Ro1
1 outer wall, 2 inner walls load, 2 inner walls simple, 1 floor towards lower floor, 1 ceiling towards attic, 1 roof towards outside
Extends from AixLib.ThermalZones.HighOrder.Rooms.BaseClasses.PartialRoom.
Information
Overview
Model for a room with 1 outer wall, 2 inner walls load, 2 inner walls simple, 1 floor towards lower floor, 1 ceiling towards attic, 1 roof towards outside.
Concept

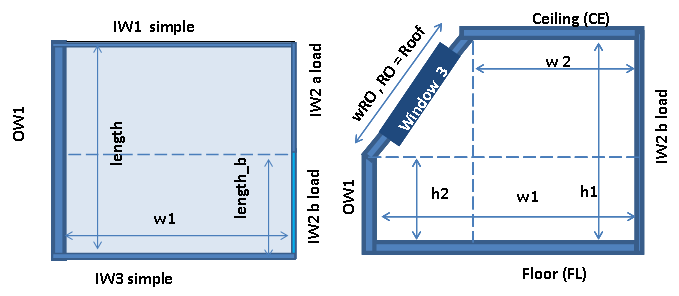

The following figure presents the room's layout:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Dimensions | |||
| Modelica.Units.SI.Length | room_length | 2 | length |
| Modelica.Units.SI.Length | room_lengthb | 2 | length_b |
| Modelica.Units.SI.Length | room_width_long | 2 | w1 |
| Modelica.Units.SI.Length | room_width_short | 2 | w2 |
| Modelica.Units.SI.Height | room_height_long | 2 | h1 |
| Modelica.Units.SI.Height | room_height_short | 2 | h2 |
| Modelica.Units.SI.Length | roof_width | 2 | wRO |
| Outer wall properties | |||
| Real | solar_absorptance_RO | 0.25 | Solar absoptance roof |
| Windows and Doors | |||
| Boolean | withWindow3 | true | Window 3 |
| Modelica.Units.SI.Area | windowarea_RO | 0 | Window area |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | outside_wall1 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | inner_wall1 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | inside_wall2a | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | inside_wall3 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Ceiling | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | floor | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | inside_wall2b | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | roof | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermInsideWall3 | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermInsideWall2a | ||
| Modelica.Blocks.Interfaces.RealInput | WindSpeedPort | ||
| Utilities.Interfaces.SolarRad_in | SolarRadiationPort_OW1 | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermCeiling | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermFloor | ||
| Utilities.Interfaces.SolarRad_in | SolarRadiationPort_Roof | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermInsideWall2b | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermInsideWall1 |
Revisions
-
April 23, 2020 by Philipp Mehrfeld:
#752: Propagate all parameters correctly. Extend from new partial room model. Delete TIR and TMC. Tidy up. -
April 18, 2014 by Ana Constantin:
Added documentation -
July 8, 2011 by Ana Constantin:
Implemented
