modelOw2IwL1IwS1Lf1At1Ro1
2 outer walls, 1 inner wall load, 1 inner wall simple, 1 floor towards lower floor, 1 ceiling towards attic, 1 roof towards outside
Extends from AixLib.ThermalZones.HighOrder.Rooms.BaseClasses.PartialRoom.
Information
Overview
Model for a room with 2 outer walls, 1 inner wall load, 1 inner wall simple, 1 floor towards lower floor, 1 ceiling towards attic, 1 roof towards outside.
Concept

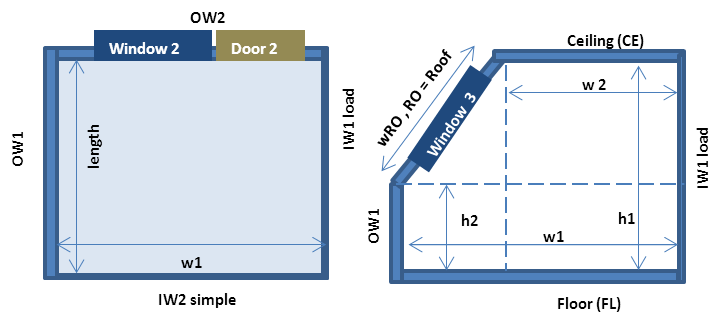

The following figure presents the room's layout:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Dimensions | |||
| Modelica.Units.SI.Length | room_length | 2 | length |
| Modelica.Units.SI.Length | room_width_long | 2 | w1 |
| Modelica.Units.SI.Length | room_width_short | 2 | w2 |
| Modelica.Units.SI.Height | room_height_long | 2 | h1 |
| Modelica.Units.SI.Height | room_height_short | 2 | h2 |
| Modelica.Units.SI.Length | roof_width | 2 | wRO |
| Windows and Doors | |||
| Boolean | withWindow2 | true | Window 2 |
| Modelica.Units.SI.Area | windowarea_OW2 | 0 | Window area |
| Boolean | withWindow3 | true | Window 3 |
| Modelica.Units.SI.Area | windowarea_RO | 0 | Window area |
| Boolean | withDoor2 | true | Door 2 |
| Modelica.Units.SI.Length | door_width_OD2 | 0 | width |
| Modelica.Units.SI.Length | door_height_OD2 | 0 | height |
| Real | U_door_OD2 | 2.5 | U-value |
| Real | eps_door_OD2 | 0.95 | eps |
| Outer wall properties | |||
| Real | solar_absorptance_RO | 0.25 | Solar absoptance roof |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | outside_wall1 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | outside_wall2 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | inside_wall1 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | inside_wall2 | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | Ceiling | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | floor | ||
| AixLib.ThermalZones.HighOrder.Components.Walls.Wall | roof | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermInsideWall2 | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermInsideWall1 | ||
| Modelica.Blocks.Interfaces.RealInput | WindSpeedPort | ||
| Utilities.Interfaces.SolarRad_in | SolarRadiationPort_OW1 | ||
| Utilities.Interfaces.SolarRad_in | SolarRadiationPort_OW2 | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermCeiling | ||
| Utilities.Interfaces.SolarRad_in | SolarRadiationPort_Roof | ||
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | thermFloor |
Revisions
-
April 23, 2020 by Philipp Mehrfeld:
#752: Propagate all parameters correctly. Extend from new partial room model. Delete TIR and TMC. Tidy up. -
April 18, 2014 by Ana Constantin:
Added documentation -
July 8, 2011 by Ana Constantin:
Implemented
