modelFLUXsurfMask
Information
Calculation of solar boundary conditions for the (Lf x Hf)-sized surface considering near and distant mask
Hypothesis and equations
This model relies on the Masks model to estimate effects of near and distant solar masks.
- Shading devices (near mask)
- Horizontal overhang such as awning
- Lateral fin
- Both overhang and lateral fin (such as egg crate)
- Vertical distant masks (such as building)
Bibliography
ISO 13791 standard
RT2012 standard for the consideration of vertical distant masks
Intégration de la protection solaire dans le logiciel PAPTER, M. ABDESSELAM, AIRab Consultant, Fevrier 2000 - Corrections effectuées car modèle incorrect
Instructions for use
none
Known limits / Use precautions
These models are valid only for vertical walls.
The accumulation of several masks of near types for a same wall is prohibited
Validations
Non validated model - Aurélie Kaemmerlen 11/2013
--------------------------------------------------------------
Licensed by EDF under a 3-clause BSD-license
Copyright © EDF 2009 - 2023
BuildSysPro version 3.6.0
Author : Aurélie KAEMMERLEN, EDF (2013)
--------------------------------------------------------------
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Options | |||
| Boolean | useEclairement | false | |
| Boolean | MasqueLointain | false | |
| Surface description | |||
| Modelica.Units.NonSI.Angle_deg | azimut | 0 | Surface azimuth (Orientation relative to the south) - S=0°, E=-90°, W=90°, N=180° |
| Modelica.Units.NonSI.Angle_deg | incl | 90 | Surface tilt - downwards = 180° skyward = 0°, vertical = 90° |
| Environment description | |||
| Real | albedo | 0.2 | Albedo of the environment |
| Integer | diffus_isotrope | 1 | Model for diffuse irradiance |
| Shading devices | |||
| Integer | TypeMasque | ||

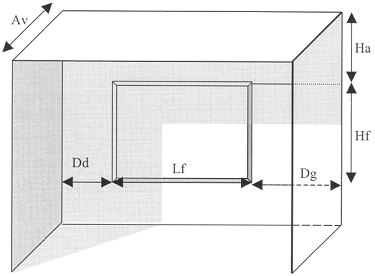

| Modelica.Units.SI.Distance | Av | 0.5 | Overhang |
| Modelica.Units.SI.Distance | Ha | 0.3 | Distance between the overhang and the top of the surface (window) |
| Modelica.Units.SI.Distance | Lf | 1 | Surface (window) width |
| Modelica.Units.SI.Distance | Hf | 1 | Surface (window) height |
| Modelica.Units.SI.Distance | Dd | 0.5 | Lateral overhang (right hand side) |
| Modelica.Units.SI.Distance | Dg | 0.5 | Lateral overhang (left hand side) |
| Distant masks | |||
| Modelica.Units.SI.Distance | dE | 5 | Distance from the surface (window) to the distant masks |
| Modelica.Units.SI.Distance | hpE | 2 | Height of the distant mask |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Interfaces.SolarFluxOutput[3] | FluxMasques | Solar irradiation for the surface considering the shading effects 1-Diffuse, 2- Direct and 3-Cosi | |
| Modelica.Blocks.Interfaces.RealInput[10] | G | Inputs data {DIFH, DIRN, DIRH, GLOH, t0, CosDir[1:3], solar azimuth angle, solar elevation angle} | |
| Modelica.Blocks.Interfaces.RealInput[3] | Ecl | Natural incident illuminance -direct -diffuse -reflected [lumen] | |
| Modelica.Blocks.Interfaces.RealOutput[3] | EclMasques | Natural illuminance considering shading effects -direct -diffuse -reflected [lumen] |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Irradiation.FLUXsurf | fLUXsurf | ||
| Masks | masques |
Revisions
Benoît Charrier 05/2015 : adaptation du modèle pour l'intégration des masques lointains
