functionf_Quadratic
Square law and power law
Information

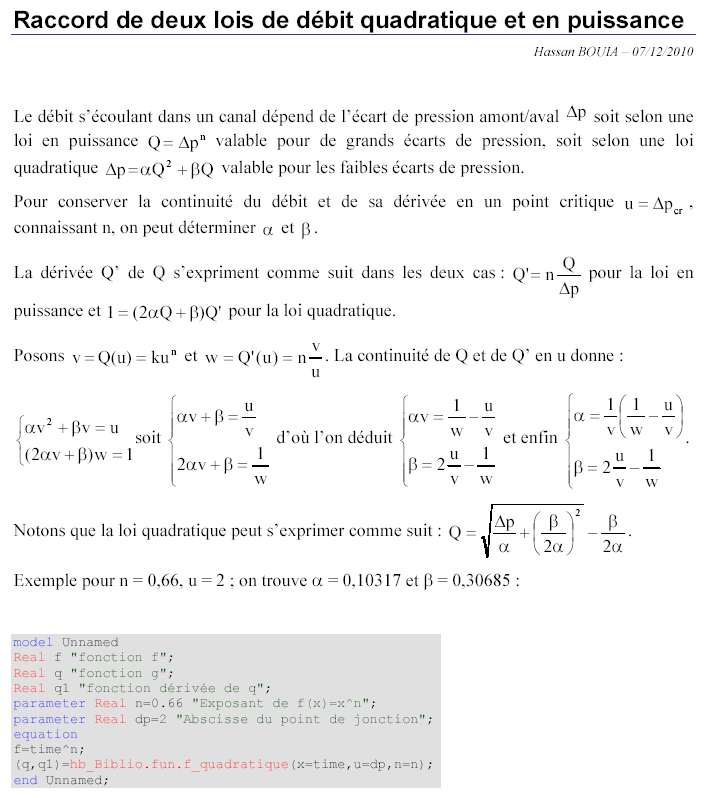

Hypothesis and equations
Bibliography
none
Instructions for use
none
Known limits / Use precautions
none
Validations
Validated function - Hassan Bouia 12/2010
--------------------------------------------------------------
Licensed by EDF under a 3-clause BSD-license
Copyright © EDF 2009 - 2023
BuildSysPro version 3.6.0
Author : Hassan BOUIA, EDF (2010)
--------------------------------------------------------------
Inputs
| Type | Name | Default | Description |
|---|---|---|---|
| Real | x | Abscissa | |
| Real | u | Junction abscissa | |
| Real | n | Exponent of the function, in range ]1/2,1[ |
Outputs
| Type | Name | Default | Description |
|---|---|---|---|
| Real | q | Value of the function q at x | |
| Real | q1 | Value of the derivative function of q at x |
