modelTwoPortResistance

Model of a resistance with two electrical ports

Extends from BuildingSystems.Electrical.Transmission.BaseClasses.PartialTwoPortResistance.

Information

This model represents a resistance that connects two AC one phase interfaces. This model can be used to represent a single phase cable in a AC grid.

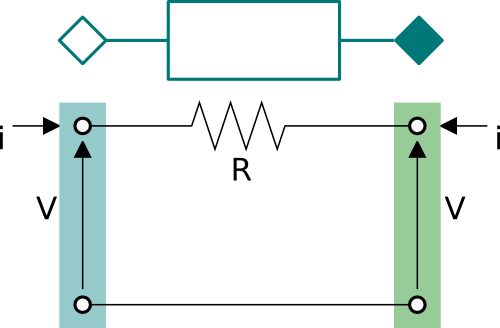

The model represents the lumped resistance as shown in the figure below.


Revisions

  • January 29, 2019, by Michael Wetter:
    Added replaceable for terminal.
  • January 14, 2015, by Marco Bonvini:
    Added equation that represents Joule losses
  • August 5, 2014, by Marco Bonvini:
    Revised model and documentation.
