modelTwoPortResistance

Model of a two port DC resistance

Extends from BuildingSystems.Electrical.Transmission.BaseClasses.PartialTwoPortResistance.

Information

This model represents a resistance that connect two DC interfaces. This model can be used to represent a cable in a DC grid.

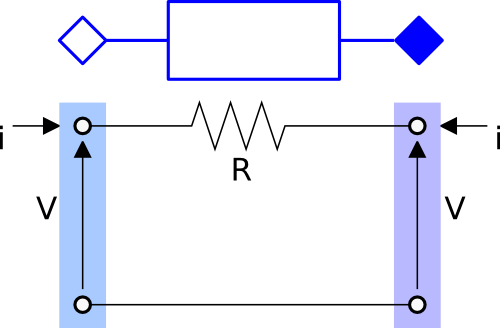

The model represents the lumped resistance as shown in the figure below.


Revisions

  • March 19, 2015, by Michael Wetter:
    Removed redeclaration of phase system in Terminal_n and Terminal_p as it is already declared to the be the same phase system, and it is not declared to be replaceable. This avoids a translation error in OpenModelica.
  • January 14, 2015, by Marco Bonvini:
    Added equation that represents Joule losses
  • June 2, 2014, by Marco Bonvini:
    Revised documentation.
  • October 31, 2013, by Marco Bonvini:
    First implementation.
