recordEnglanderNorford1992

Data for the supply fan in Englander and Norford (1992)

Extends from BuildingSystems.Fluid.Movers.Data.Generic.

Information

Performance data for the supply fan used in Englander and Norford (1992) (figure below). See the documentation of BuildingSystems.Fluid.Movers.Data.Fans.Greenheck for the methods used to extract data.

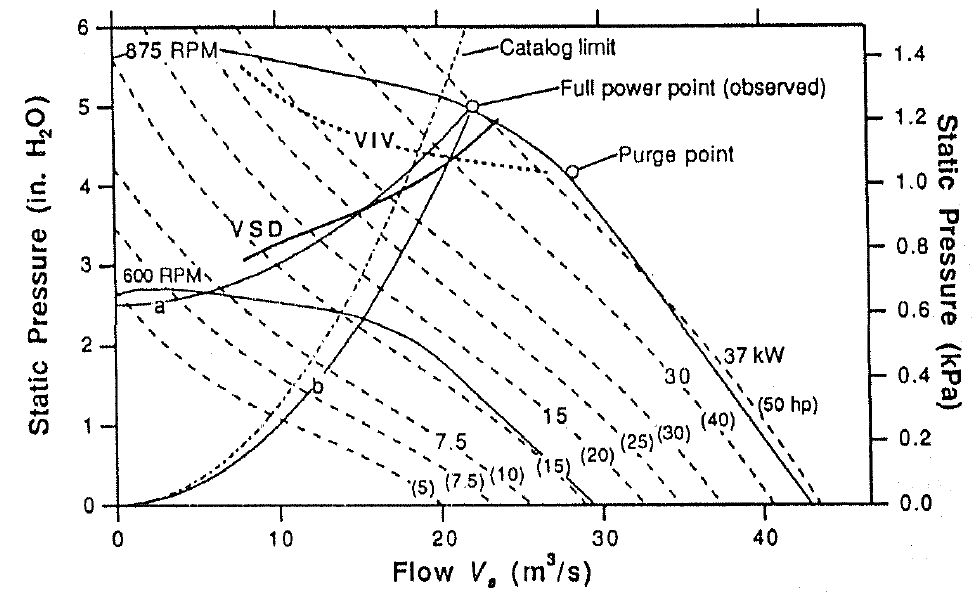

Fan curve

References

Englander, S. L., and L. K. Norford. "Saving fan energy in VAV systems- part 1: analysis of a variable-speed-drive retrofit." ASHRAE Winter Meeting, Anaheim, CA, USA, 01/25-29/92. 1992.
