modelPowerEuler
Power calculation comparison among three mover types, using Euler number computation for m_flow and dp
Extends from BuildingSystems.Fluid.Movers.Validation.PowerSimplified.
Information
This example is identical to
BuildingSystems.Fluid.Movers.Validation.PowerSimplified,
except that the efficiency of the flow controlled pumps
pump_dp and pump_m_flow
is estimated by using the Euler number and its correlation as implemented in
BuildingSystems.Fluid.Movers.BaseClasses.Euler.

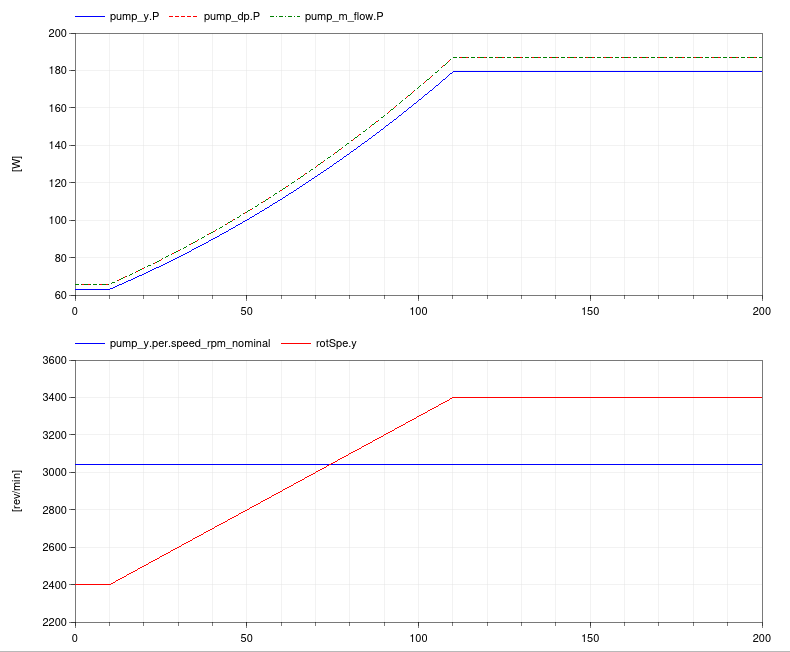

The figure below shows the approximation error for the power calculation where the speed y differs from the nominal speed ynominal.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| BuildingSystems.Fluid.Movers.Data.Generic | perPea | Peak condition |
Revisions
-
November 22, 2021, by Hongxiang Fu:
First implementation.
