modelIndirect

Indirect heating energy transfer station for district energy systems

Extends from Buildings.DHC.ETS.BaseClasses.PartialIndirect.

Information

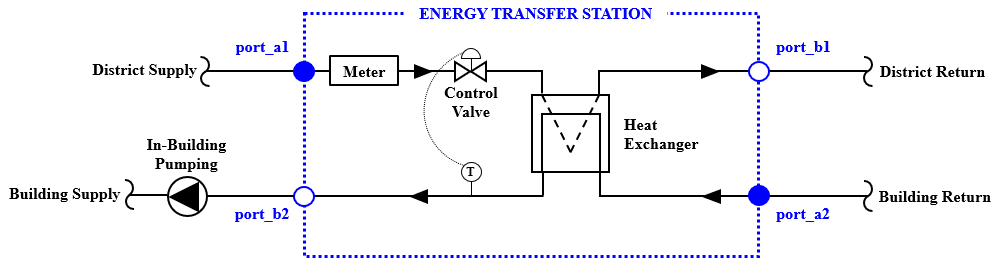

Indirect heating energy transfer station (ETS) model that controls the building chilled water supply temperature by modulating a primary control valve on the district supply side. The design is based on a typical district heating ETS described in ASHRAE's District Heating Guide. As shown in the figure below, the building pumping design (constant/variable) is specified on the building side and not within the ETS.

DHC.ETS.Indirect

Reference

American Society of Heating, Refrigeration and Air-Conditioning Engineers. (2013). Chapter 5: Consumer Interconnection. In District Heating Guide.

Revisions

  • March 27, 2024, by David Blum:
    Update icon and fix port orientation to align with convention.
    This is for issue #3606.
  • January 8, 2024, by David Blum:
    Correct documentation to describe heating. This is for issue 3628.
  • April 7, 2023, by David Blum:
    First implementation.
