modelACACConverter
Extends from Buildings.Electrical.AC.ThreePhasesUnbalanced.Conversion.BaseClasses.PartialConverterYY.
Information
This is an AC AC converter, based on a power balance between both circuit sides. The parameter conversionFactor defines the ratio between the RMS voltages
V2 = conversionFactor * V1
where V1 and V2 are the RMS voltages at the primary and secondary sides of the transformer (connector N and P respectively).
The loss of the converter is proportional to the power transmitted.
The parameter eta is the efficiency of the transfer.
The loss is computed as
Ploss = (1-η) Ptr
where Ptr is the power transmitted. The model is bi-directional and the power can flow from both the primary to the secondary and vice-versa. Furthermore, reactive power on both side are set to 0.
Configuration:

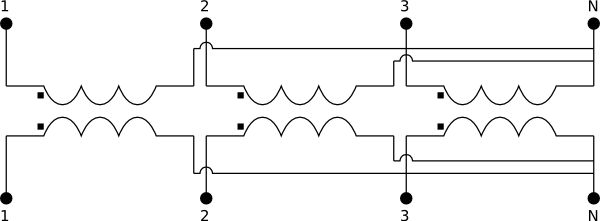

The image below describes the connection of the windings.
Note:
This model reuses models from Buildings.Electrical.AC.OnePhase.Conversion.ACACConverter.
See Buildings.Electrical.AC.ThreePhasesUnbalanced.Conversion.BaseClasses.PartialConverterYY for details on the connections.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | conversionFactor | Ratio of QS rms voltage on side 2 / QS rms voltage on side 1 | |
| Modelica.Units.SI.Efficiency | eta | Converter efficiency, pLoss = (1-eta) * Ptr | |
| Ground › side 1 | |||
| Boolean | ground_1 | false | Connect side 1 of converter to ground |
| Ground › side 2 | |||
| Boolean | ground_2 | true | Connect side 2 of converter to ground |
Revisions
-
October 3, 2014, by Marco Bonvini:
Revised documentation. -
June 6, 2014, by Marco Bonvini:
First implementation.
