recordValidation

Configuration data record for validation models

Extends from Buildings.Fluid.Geothermal.ZonedBorefields.Data.Configuration.Template.

Information

This record presents an example for how to define configuration data records using the template in Buildings.Fluid.Geothermal.ZonedBorefields.Data.Configuration.Template.

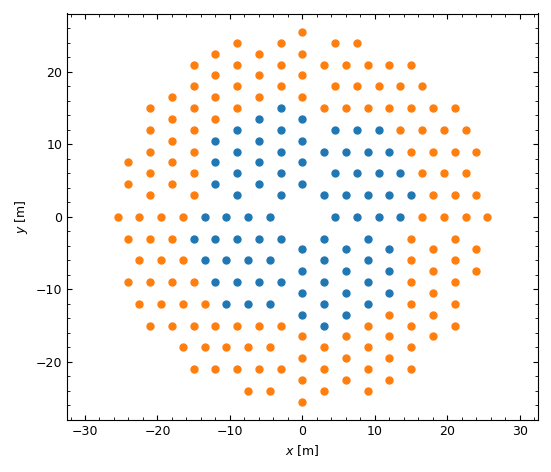

The configuration consists in 228 boreholes divided into 2 zones of 80 and 148. The borefield is configured in a cylindrical arrangement with the 2 zones distributed in annular regions. The borefield configuration is shown in the figure below.


Revisions

  • May 2024, by Massimo Cimmino:
    First implementation.
