modelForcedConvection
Ventilation with forced convection in an empty room
Extends from Modelica.Icons.Example, Buildings.ThermalZones.Detailed.Examples.FFD.BaseClasses.PartialRoom.
Information

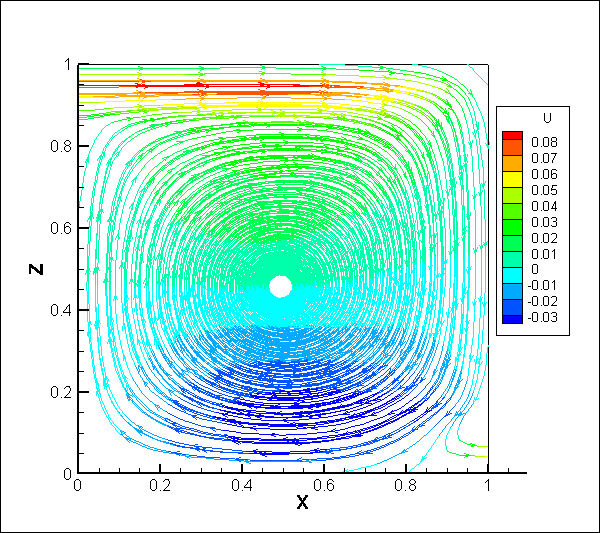

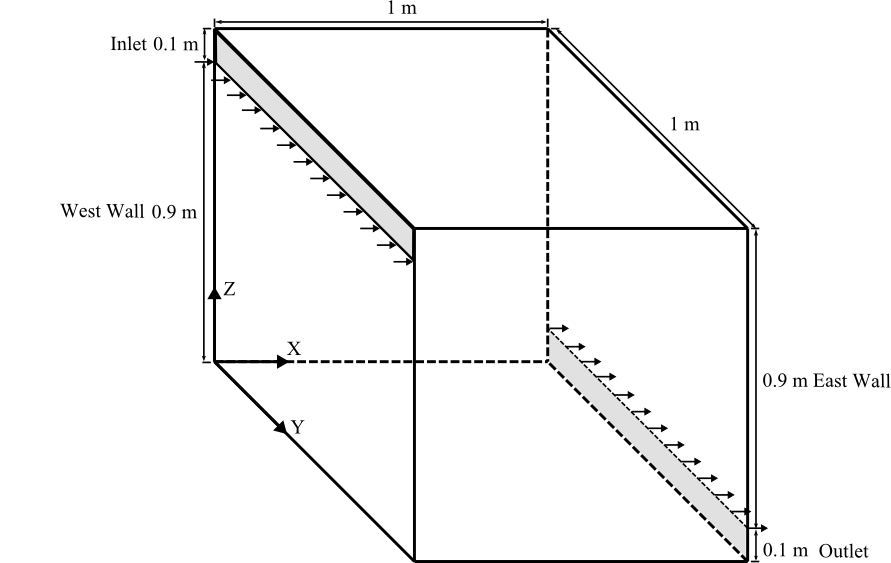

This model tests the coupled simulation of Buildings.ThermalZones.Detailed.CFD with the FFD program by simulating the ventilation with forced convection in an empty room. Figure (a) shows the schematic of the FFD simulation and Figure (b) shows streamlines and contours of the horizontal velocity U as simulated by the FFD.
Figure (a)
Figure (b)
Components
| Type | Name | Default | Description |
|---|---|---|---|
| HeatTransfer.Sources.FixedTemperature[nSurBou] | TWal | Temperature of other walls | |
| Buildings.Fluid.Sources.Boundary_pT | bouOut | ||
| Fluid.Sources.MassFlowSource_T | bounIn |
Revisions
-
December 31, 2013, by Wangda Zuo:
First implementation.
