modelTestCase3
Bolted three-phase short circuit at the high-level side of the transformer
Extends from Icons.Example (Icon for runnable examples).
Information

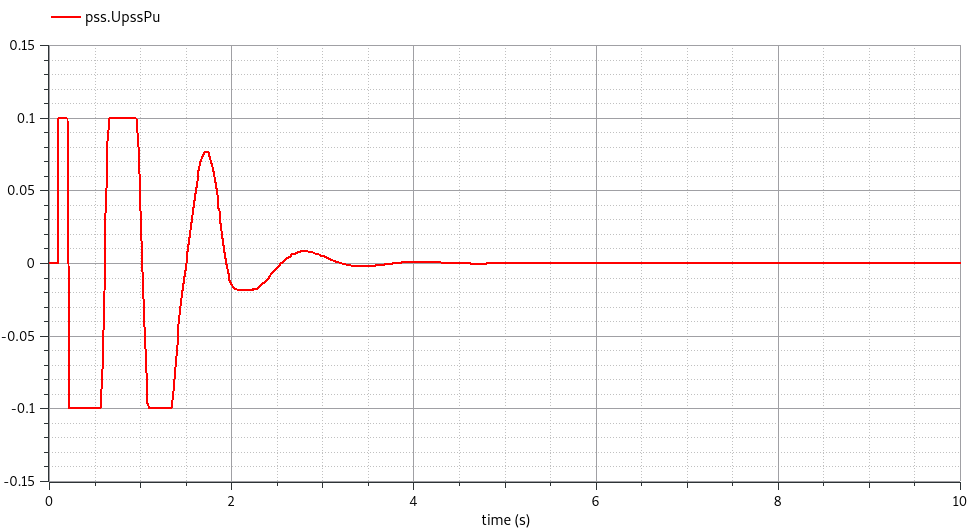

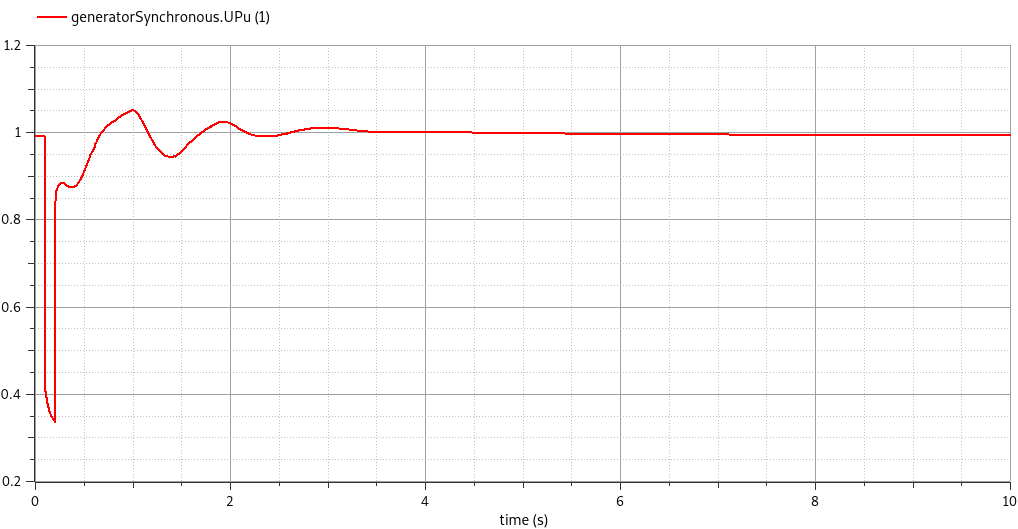

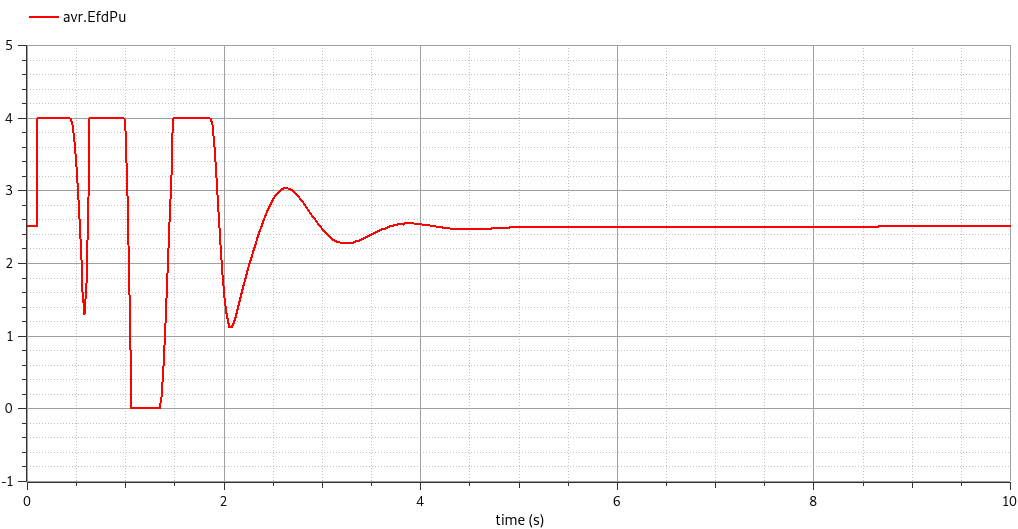

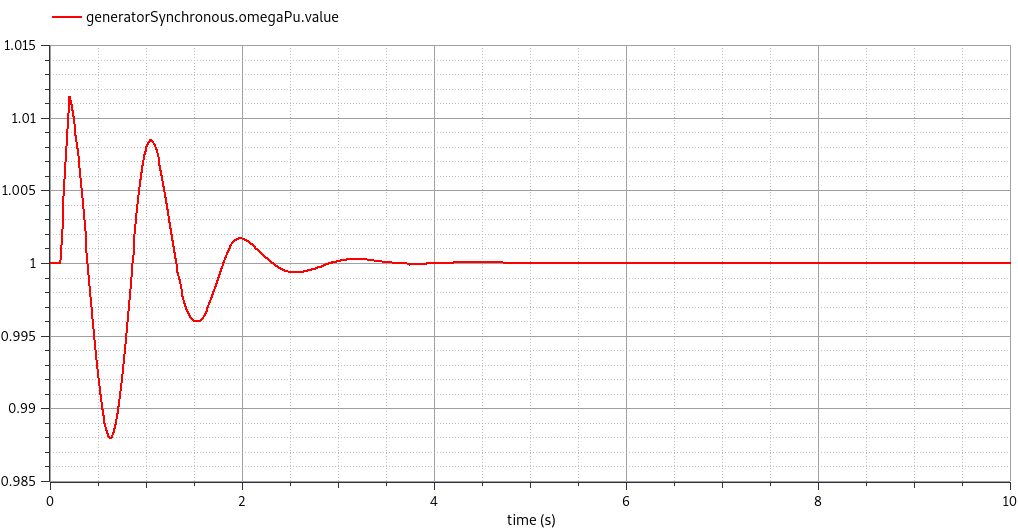

The purpose of the third test case is to compare the dynamic behaviour of the model for the synchronous machine with its whole control in operation during and after a three-phase short-circuit by analysing the terminal voltage, the excitation voltage inside the generator, the active and reactive power of the synchronous machine as well as speed.At the event-time a bolted three-phase short circuit occurs at the high-voltage side of the unit transformer. After the fault duration of 0.1 s the initial system conditions are restored.
The results obtained match perfectly the results presented in the report.
