modelGovCt2St4b
Active power variation on the load with governor GovCT2
Extends from Icons.Example (Icon for runnable examples).
Information
This test case has been created to test the GovCt2 governor model.It has been derifved from Dynawo.Examples.SMIB.Standard.GovSteam1ExcSt4b2.
It represents a synchronous machine with AVR and governor connected to a load.
A load represents a 501 MVA synchronous machine connected to an infinite bus through a transformer and a line, with an active and reactive load between the transformer and the line.
A load step is introduced at t=0.1 s.
A load step is introduced at t=0.1 s.

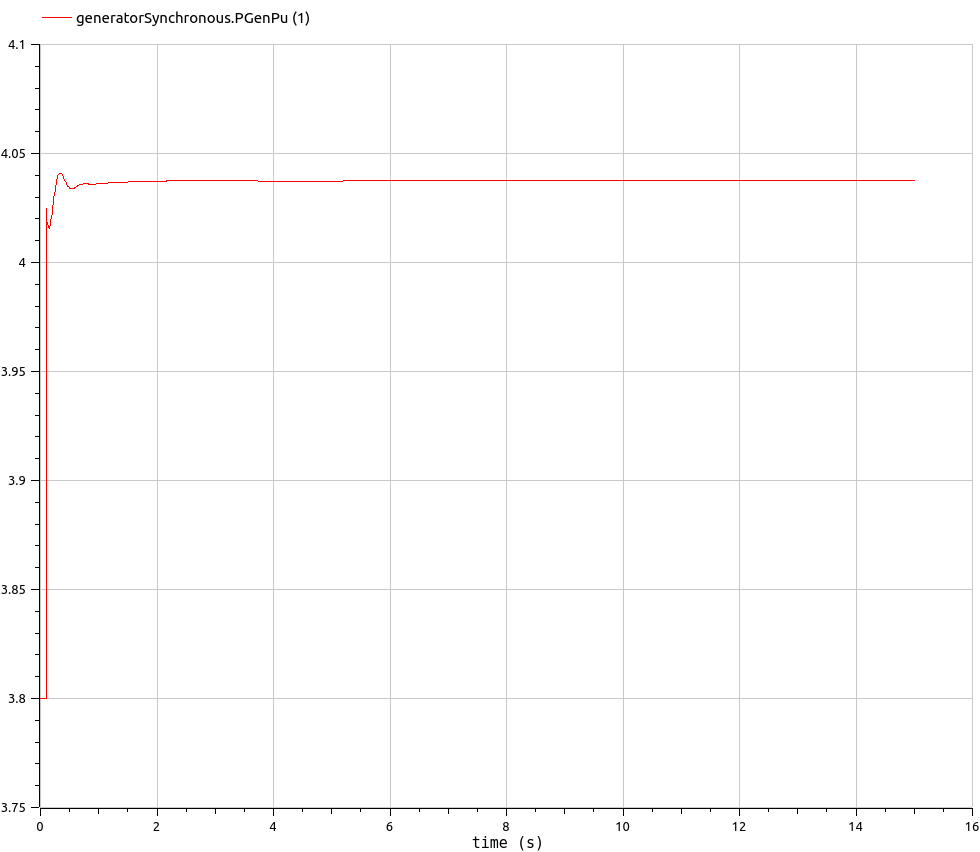

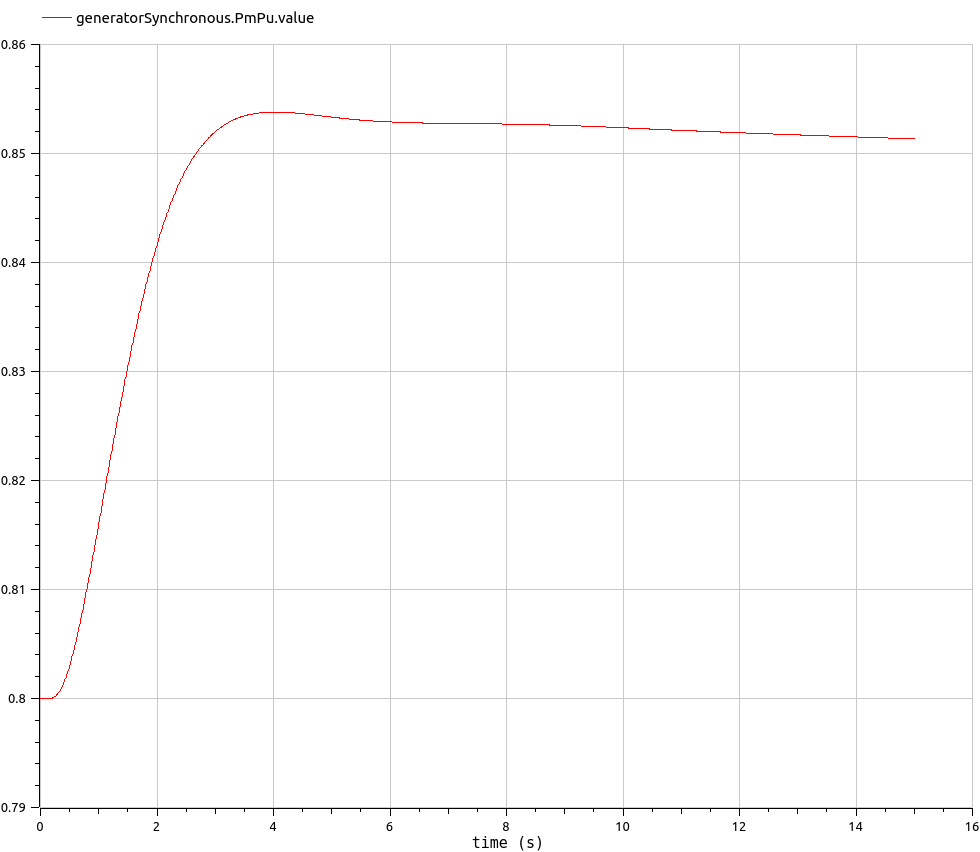

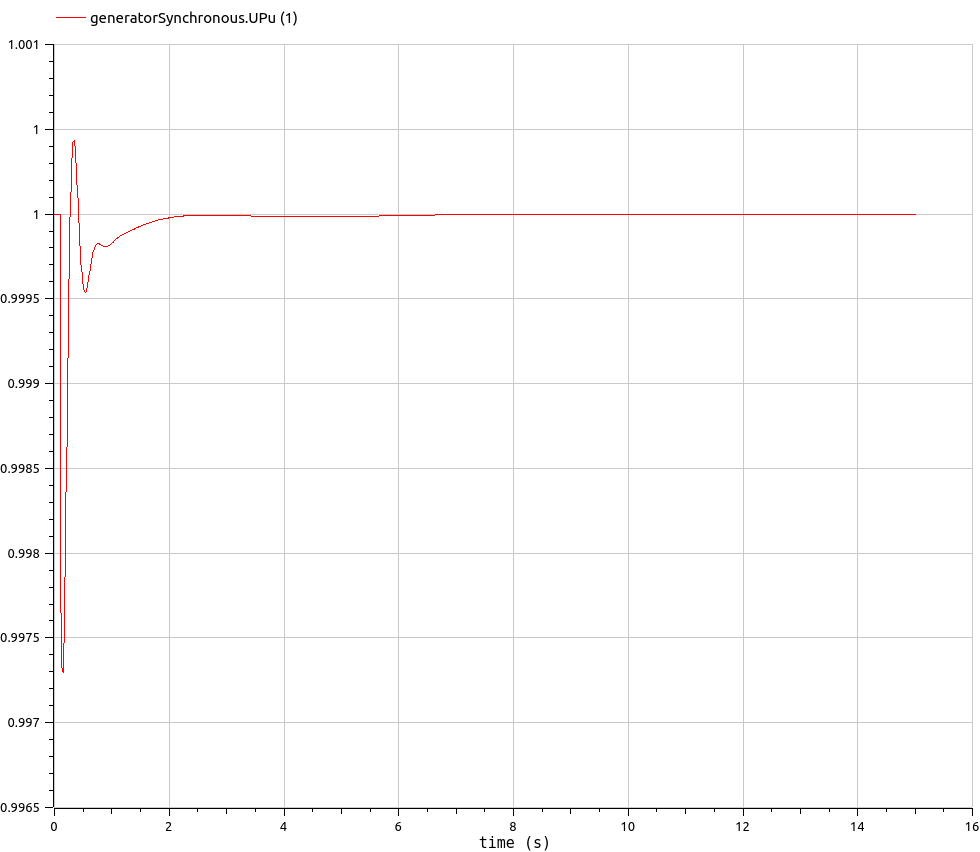

Below the response of generated active power, mechanical power and voltage are shown.

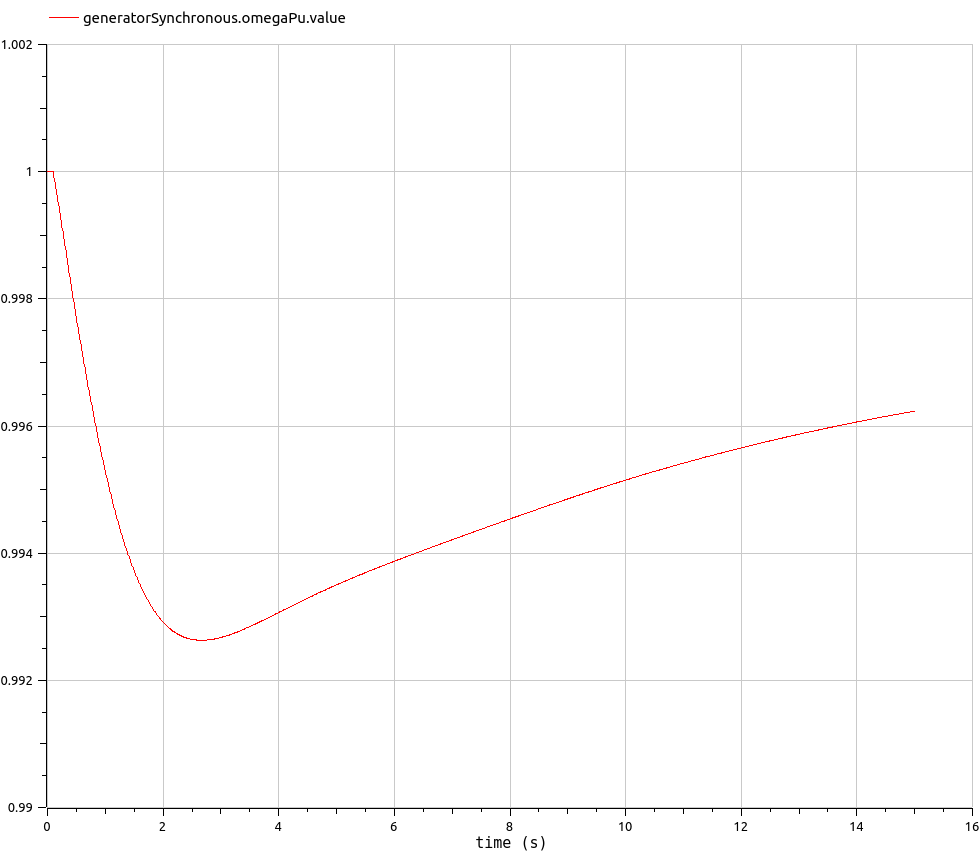

OmegaPu:
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Dynawo.Examples.BaseClasses.GeneratorSynchronousInterfaces | generatorSynchronous | ||
| Dynawo.Electrical.Controls.Machines.Governors.Standard.Generic.GovCt2 | governor | ||
| Dynawo.Electrical.Controls.Machines.VoltageRegulators.Standard.St4b | avr | ||
| Modelica.Blocks.Sources.Constant | UPssPu | ||
| Modelica.Blocks.Sources.Constant | UsRefPu | ||
| Modelica.Blocks.Sources.Constant | const | ||
| Modelica.Blocks.Sources.Constant | const1 | ||
| Dynawo.Electrical.Loads.LoadAlphaBeta | load | ||
| Modelica.Blocks.Sources.Constant | QRefPu | ||
| Modelica.Blocks.Sources.Step | PRefPu | ||
| Modelica.Blocks.Sources.Constant | OmegaRef | ||
| Modelica.Blocks.Sources.Constant | PGovernorRefPu | ||
| Modelica.Blocks.Sources.Constant | constant1 |
