modelGovHydro4St4b

Active power variation on the load with governor GovHydro4
Diagram of GovHydro4St4b

Extends from Icons.Example (Icon for runnable examples).

Information

This test case tests the governor GovHydro4 in combination with a synchrounours generator three windings and the AVR St4b.
An active load step of 0.05 pu is applied at t=0.1s.

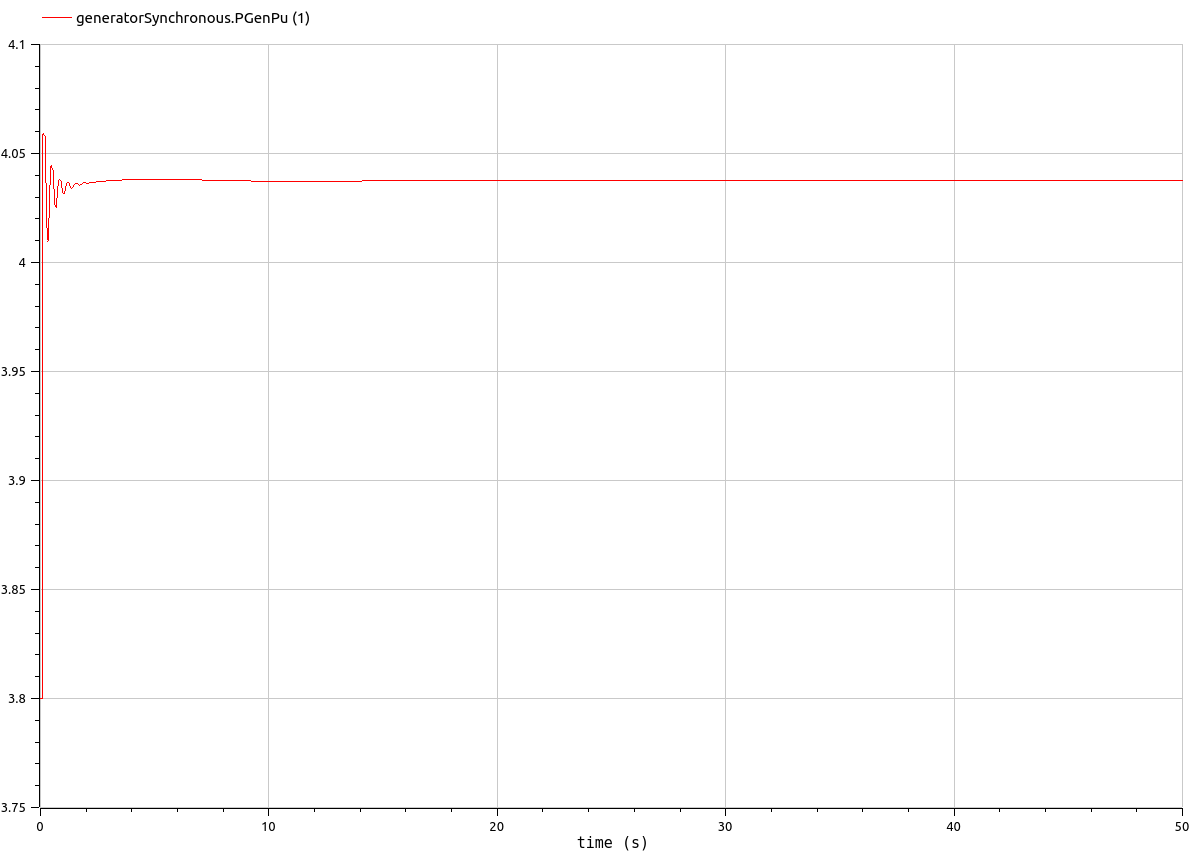

PGenPu:

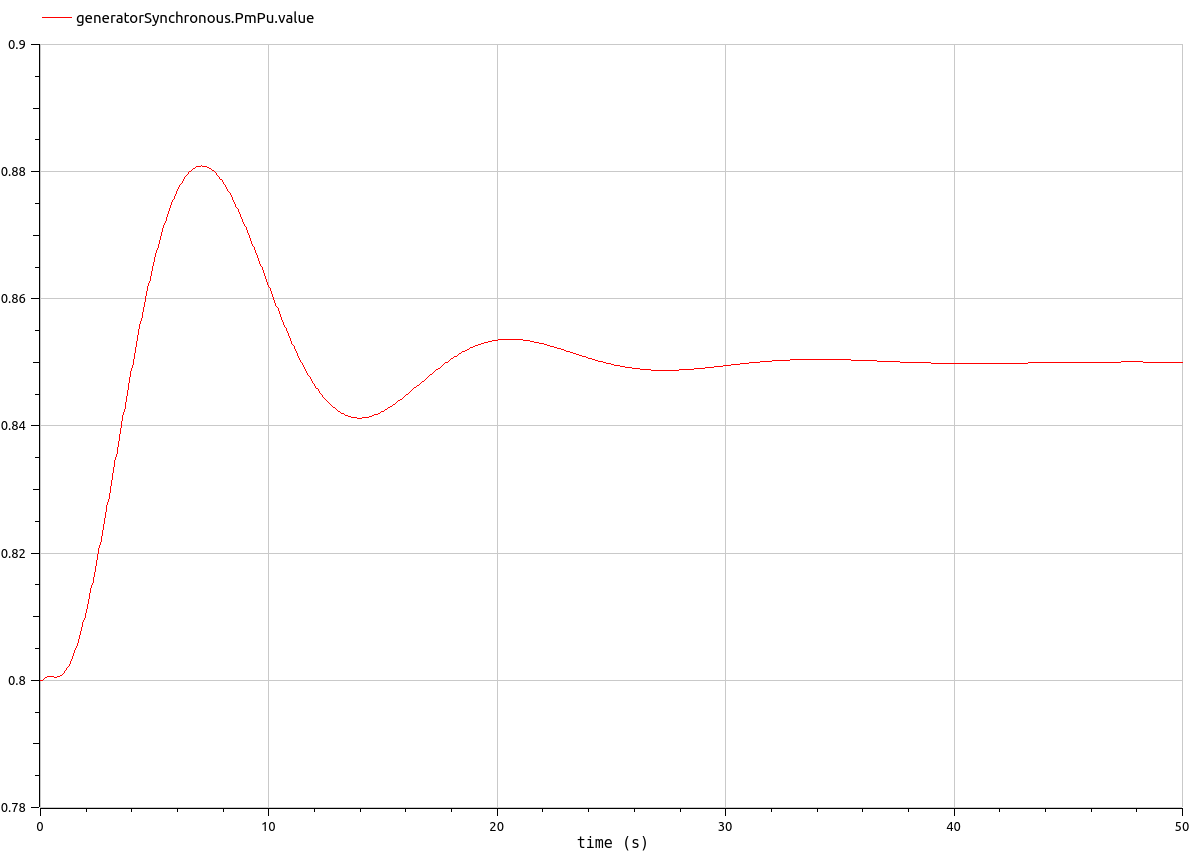

PmPu:

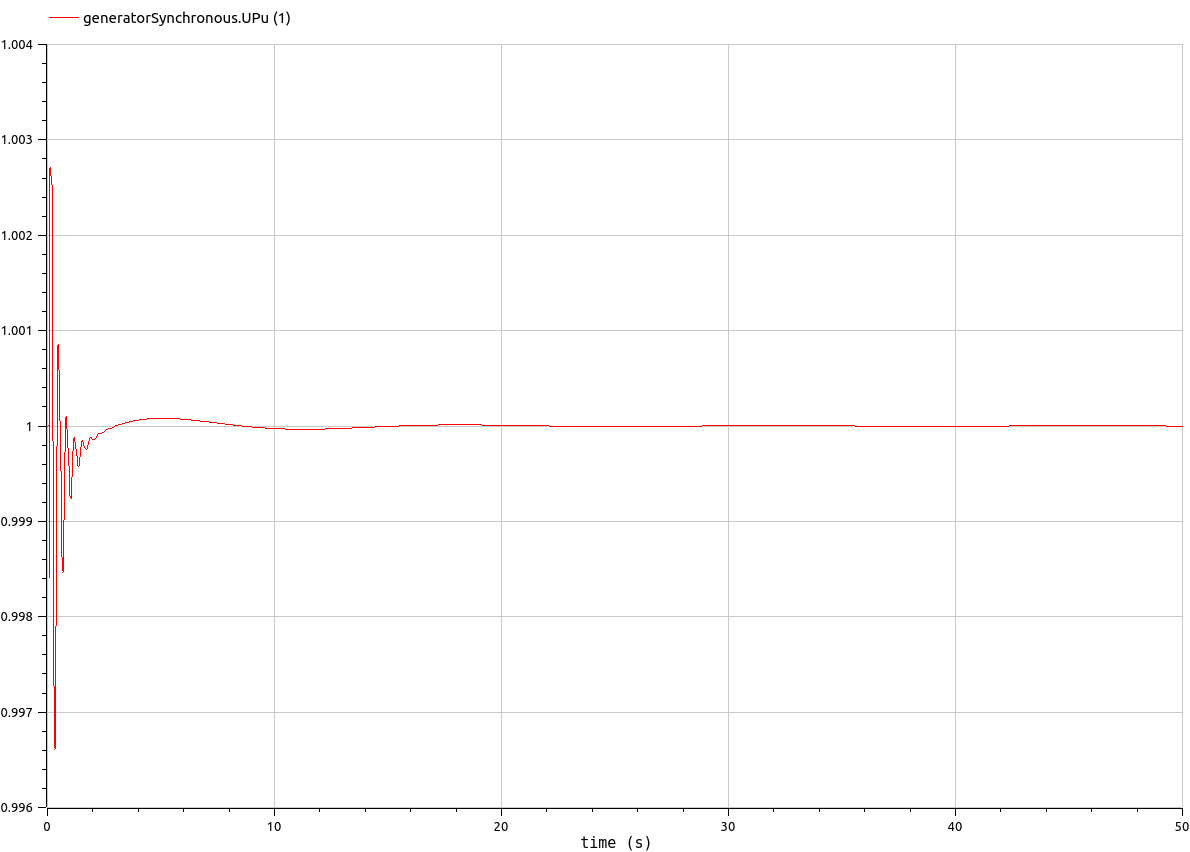

UPu:





Components

TypeNameDefaultDescription
Dynawo.Electrical.Controls.Machines.VoltageRegulators.Standard.St4bavr
Modelica.Blocks.Sources.Constantconst
Modelica.Blocks.Sources.Constantconst1
Dynawo.Examples.BaseClasses.GeneratorSynchronousThreeWindingsInterfacesgeneratorSynchronous
Dynawo.Electrical.Controls.Machines.Governors.Standard.Hydraulic.GovHydro4governor
Dynawo.Electrical.Loads.LoadAlphaBetaload
Modelica.Blocks.Sources.ConstantomegaRef0
Modelica.Blocks.Sources.ConstantPRef0
Modelica.Blocks.Sources.StepPRefPu
Modelica.Blocks.Sources.ConstantQRefPu
Modelica.Blocks.Sources.ConstantUPssPu
Modelica.Blocks.Sources.ConstantUsRefPu
