modelGovSteamEuSt4b
Active power variation on the load with governor GovSteamEU
Extends from Icons.Example (Icon for runnable examples).
Information
This test case has been created to test the GovSteamEU governor model.It has been derived from Dynawo.Examples.SMIB.Standard.GovSteam1St4b2.
It represents a 500 MVA synchronous machine connected to an infinite bus through a transformer and a line, with an active and reactive load between the transformer and the line.
A load step is introduced at t=0.1 s.
A load step is introduced at t=0.1 s.

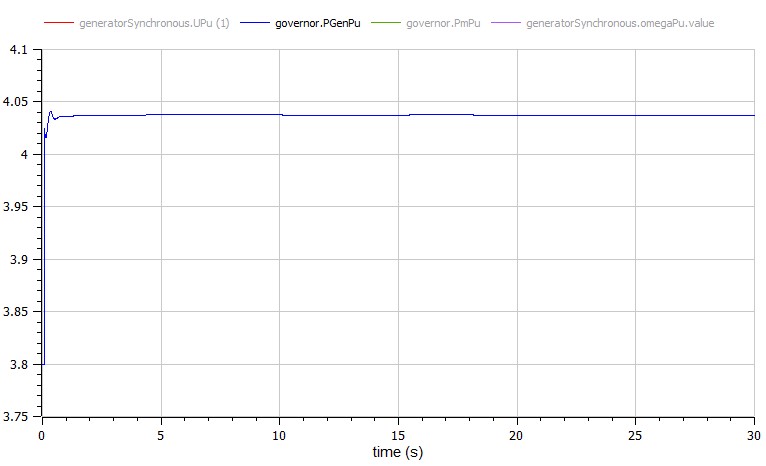

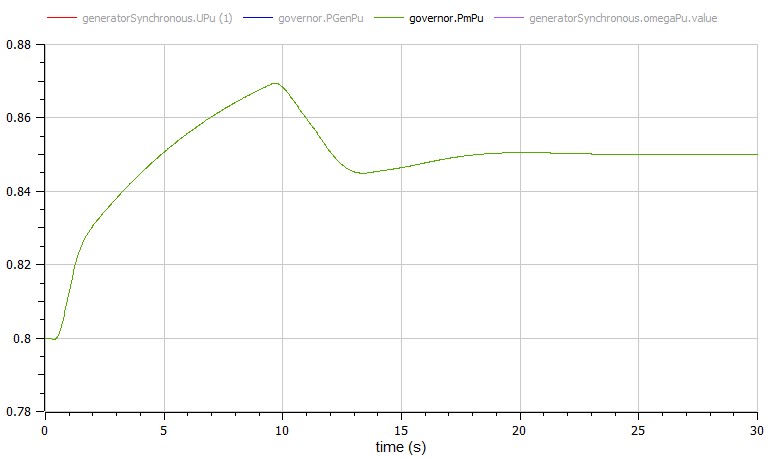

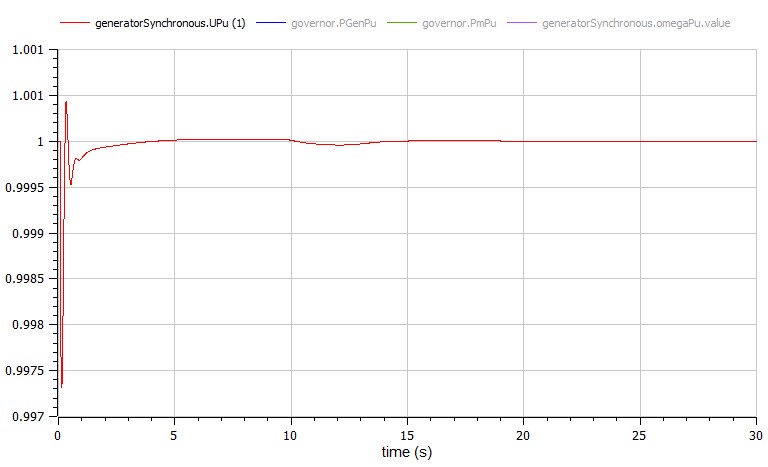

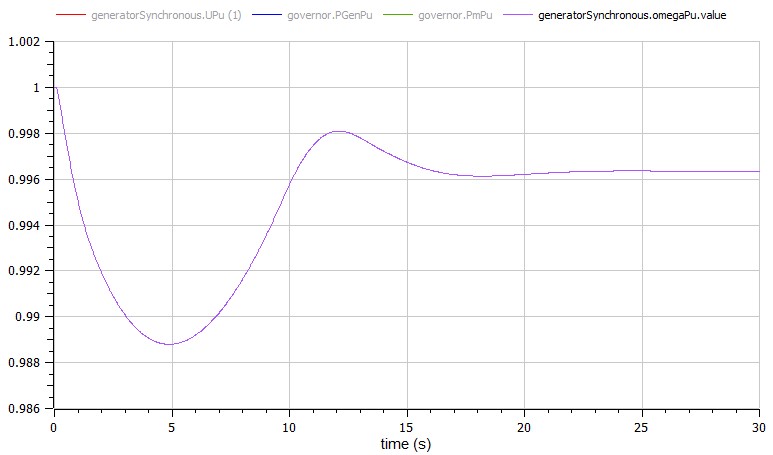

Below the response of generated active power, mechanical power, voltage and frequency are shown.
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Dynawo.Examples.BaseClasses.GeneratorSynchronousInterfaces | generatorSynchronous | ||
| Dynawo.Electrical.Controls.Machines.VoltageRegulators.Standard.St4b | avr | ||
| Dynawo.Electrical.Controls.Machines.Governors.Standard.Steam.GovSteamEu | governor | ||
| Modelica.Blocks.Sources.Constant | PGovernorRefPu | ||
| Modelica.Blocks.Sources.Constant | OmegaRef | ||
| Modelica.Blocks.Sources.Constant | UPssPu | ||
| Modelica.Blocks.Sources.Constant | UsRefPu | ||
| Modelica.Blocks.Sources.Constant | const | ||
| Modelica.Blocks.Sources.Constant | const1 | ||
| Dynawo.Electrical.Loads.LoadAlphaBeta | load | ||
| Modelica.Blocks.Sources.Constant | QRefPu | ||
| Modelica.Blocks.Sources.Step | PRefPu |
