modelReducedOrderSFR
Extends from Icons.Example (Icon for runnable examples).
Information
This test case enables to reproduce the examples and plots provided by Anderson in its paper.By modifying the different parameters, the results of the paper can be easily reproduced which validates the implementation of the model.

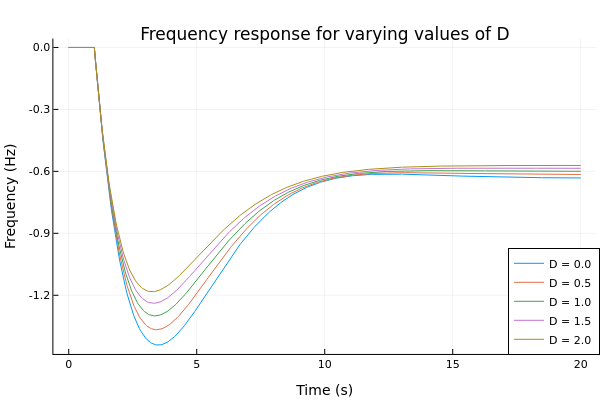

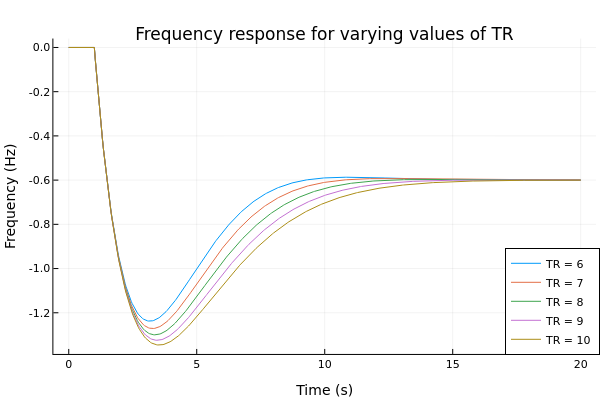

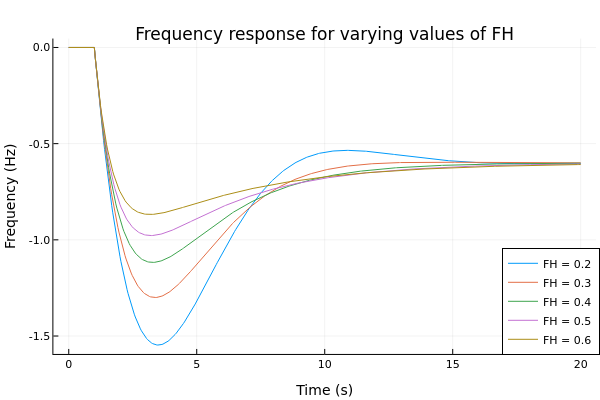

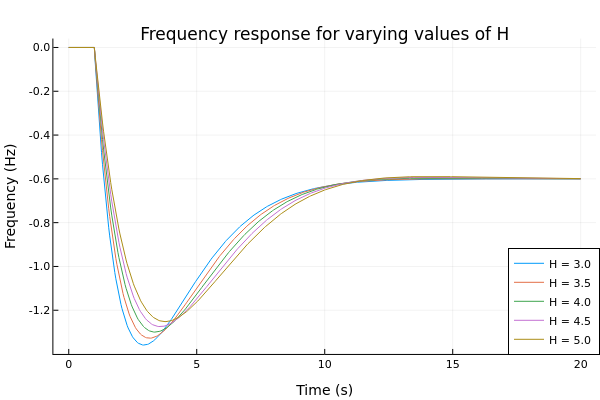

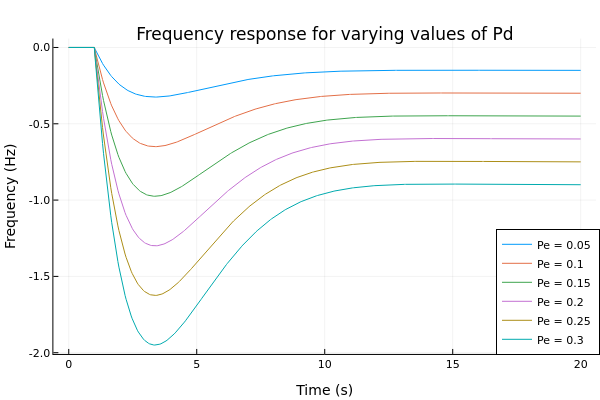

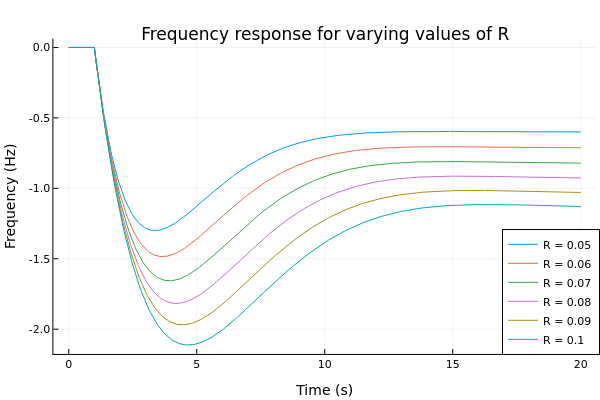

The results for different variations of active power, governor droop, inertia constants, reheat time constants, high pressure fraction and damping constant are presented below:
The reference of the model is the following:
P. M. Anderson and M. Mirheydar, "A low-order system frequency response model," in IEEE Transactions on Power Systems, vol. 5, no. 3, pp. 720-729, Aug. 1990, doi: 10.1109/59.65898.
keywords: {Frequency response;Power system modeling;Power system dynamics;Frequency estimation;Power generation;Impedance;Frequency synchronization;Nonlinear dynamical systems;Nonlinear equations;Turbines},
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | Pe0Pu | 0 |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Dynawo.Electrical.Controls.Frequency.SystemFrequencyResponse.ReducedOrderSFR | reducedOrderSFR | ||
| Modelica.Blocks.Sources.Constant | Psp | ||
| Modelica.Blocks.Sources.Step | Pe |
