Pump data for a Wilo Stratos 25/1-6 pump

Extends from Generic.

Information

Data from http://productfinder.wilo.com/en/COM/product/00000018000028040002003a/fc_product_datasheet

The nominal rpm is arbitrarily chosen as the rpm of the pump curve in the data sheet that has the highest rpm, without being limited by the maximum power limitation (see dotted curve on figure below). Pump curves (H(m_flow) and P(m_flow)) from the data sheets are digitized using web plot digitizer.

Limitations:

  • The pump curve cap at high rpm that can be seen is not enforced by the model.
  • The pump curve may be altered slightly to guarantee that dp/dm<0

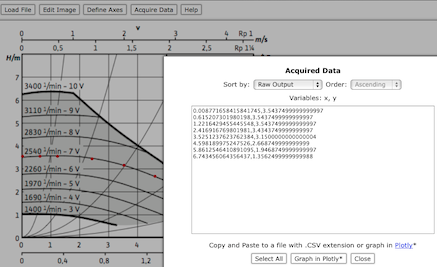

The figure below illustrates a digitized pump curve.

Pump curve

Revisions

  • February 17, 2016, by Michael Wetter:
    Updated parameter names for #396.
  • December 12, 2014, by Michael Wetter:
    Added defaultComponentPrefixes and defaultComponentName annotations.
  • April 17, 2014 by Filip Jorissen:
    Initial version
