modelTwoPortInductance
Model of an inductive element with two electrical ports
Extends from IDEAS.Electrical.Transmission.BaseClasses.PartialTwoPortInductance.
Information
This model represents an inductance that connects two AC one phase interfaces. This model can be used to represent a single phase cable in a AC grid.

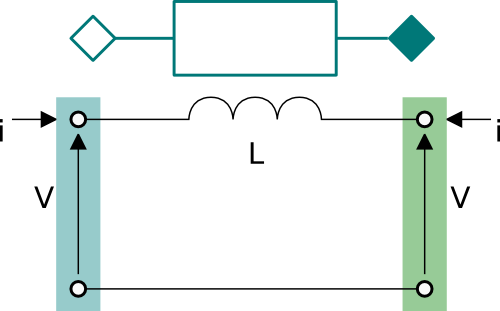

The model represents the lumped inductance as shown in the figure below.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modeling assumption | |||
| IDEAS.Electrical.Types.Load | mode | IDEAS.Electrical.Types.Load.FixedZ_steady_state | Type of model (e.g., steady state, dynamic, prescribed power consumption, etc.) |
Revisions
-
January 29, 2019, by Michael Wetter:
Addedreplaceablefor terminal. -
May 26, 2016, by Michael Wetter:
Moved function call toPhaseSystem.thetaRefout of derivative operator as this is not yet supported by JModelica. -
August 5, 2014, by Marco Bonvini:
Revised model and documentation.
