modelTwoPortResistance_N
Model of a resistance with two electrical ports and neutral cable
Extends from Modelica.Electrical.Analog.Interfaces.ConditionalHeatPort, IDEAS.Electrical.AC.ThreePhasesUnbalanced.Interfaces.TwoPort_N.
Information
Resistive model that connects two AC three-phase unbalanced interfaces with neutral line. This model can be used to represent a cable in a three-phase unbalanced AC system.

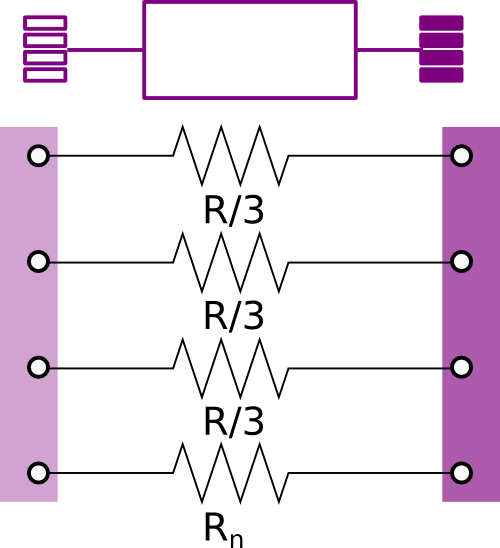

The model represents the lumped resistance as shown in the figure above. Assuming that the resistance R is the overall resistance of the cable, each line has a resistance equal to R/3.
The resistance of the neutral cable is defined separately using the parameter
Rn.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Temperature | T_ref | 298.15 | Reference temperature |
| Modelica.Units.SI.Temperature | M | 507.65 | Temperature constant (R_actual = R*(M + T_heatPort)/(M + T_ref)) |
| Modelica.Units.SI.Resistance | R | Resistance at temperature T_ref | |
| Modelica.Units.SI.Resistance | Rn | Resistance of neutral cable at temperature T_ref |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| OnePhase.Lines.TwoPortResistance | phase1 | Resistance line 1 | |
| OnePhase.Lines.TwoPortResistance | phase2 | Resistance line 2 | |
| OnePhase.Lines.TwoPortResistance | phase3 | Resistance line 3 | |
| OnePhase.Lines.TwoPortResistance | neutral | Resistance neutral cable |
Revisions
-
January 14, 2015, by Marco Bonvini:
Added model and user guide
