modelTwoPortRCLine
Model of a two port DC resistance and capacity (T-model)
Extends from IDEAS.Electrical.Transmission.BaseClasses.PartialTwoPortRLC.
Information
This model represents a series of two resistances and a capacitance that connect two DC interfaces. This model can be used to represent a cable in a DC grid.

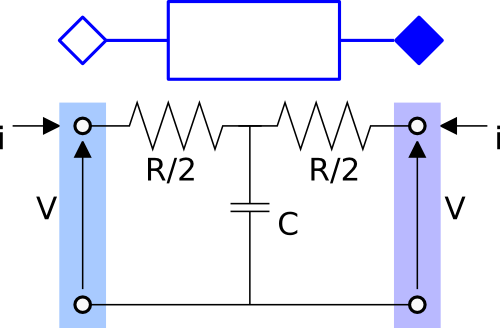

The model represents the lumped resistances and capacity (T-model) as shown in the figure below.
As can be seen in the figure, the resistance R is split in two halves
and the capacitance is located in the center.
The capacitance in the center is optional and can be selected using the
boolean flag use_C = true. The model is either dynamic or static depending on the
presence of the capacitive effect.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Voltage | Vc_start | V_nominal | Initial value of the voltage of the capacitance in the middle of the line |
| Model › Assumptions | |||
| Boolean | use_C | false | Set to true to add a capacitance in the center of the line |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Voltage | Vc | Voltage of the capacitor |
Revisions
-
March 19, 2015, by Michael Wetter:
Removed redeclaration of phase system inTerminal_nandTerminal_pas it is already declared to the be the same phase system, and it is not declared to be replaceable. This avoids a translation error in OpenModelica. -
March 10, 2015, by Marco Bonvini:
Added initial equation and parameterVc_start. -
January 14, 2015, by Marco Bonvini:
Added equation that represents Joule losses -
June 2, 2014, by Marco Bonvini:
Revised documentation. -
October 31, 2013, by Marco Bonvini:
First implementation.
