recordIEEE_34_AL120

Grid model inspired to the IEEE 34 Node test feeder

Extends from IDEAS.Electrical.Transmission.Grids.PartialGrid.

Information

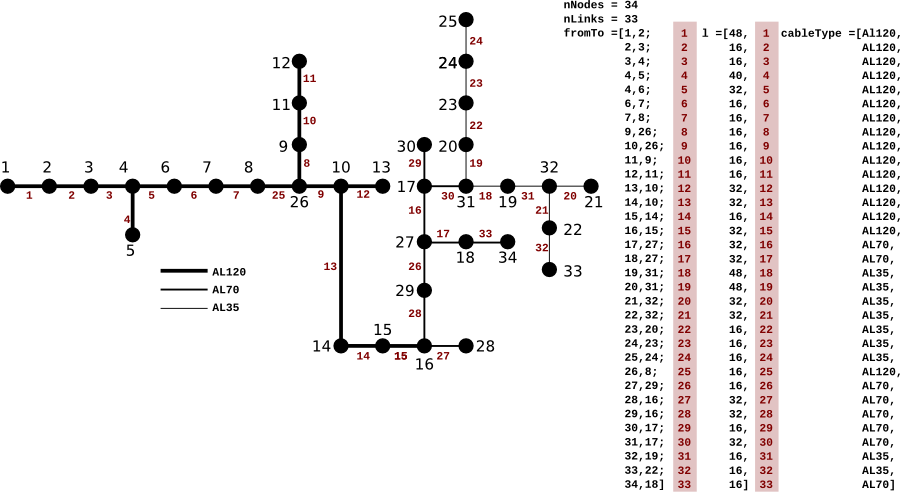

This model represents a grid inspired by the IEEE 34 node test feeder. In this example, the cable types and lengths have been modified in order to represent a typical distribution feeder.

The following three type of cables are in the grid: AL120, AL70, and Al35.

alt-image

Revisions

  • September 23, 2014, by Marco Bonvini:
    Added redeclare statement needed to specify the type of cables used in the array.
  • June 3, 2014, by Marco Bonvini:
    Added User's guide.
