functionbodeSISO

Information

Syntax

DiscreteStateSpace.Plot.bodeSISO(dss)
   or
DiscreteStateSpace.Plot.bodeSISO(
  dss,
  iu,
  iy,
  nPoints,
  autoRange,
  f_min,
  f_max,
  magnitude=true,
  phase=true,
  defaultDiagram=Modelica_LinearSystems2.Internal.DefaultDiagramBodePlot(),
  device=Modelica_LinearSystems2.Utilities.Plot.Records.Device() )

Description

This function plots a bode-diagram of the transfer function corresponding to the behavior of the state space system from iu'th element of the input vector u to the iy'th element of the output vector y.

Example

  Modelica_LinearSystems2.DiscreteStateSpace dss=Modelica_LinearSystems2.DiscreteStateSpace(
    A = [0.9048, 0.0,    0.0;
           0.0,   0.8187, 0.0;
           0.0,   0.0,    0.7408]
    B = [0.0;
          0.0906;
        -0.0864],
    C = [0.0, 1.0, 1.0],
    D = [1.0],
    B2 = [0.0;
          0.0;
          0.0],
    Ts = 0.1);

  Integer iu=1;
  Integer iy=1;

algorithm
  Modelica_LinearSystems2.DiscreteStateSpace.Plot.plotBodeSISO(dss, iu, iy)

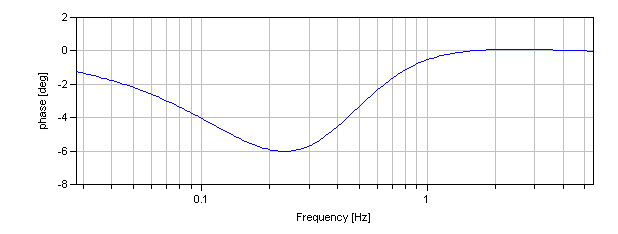

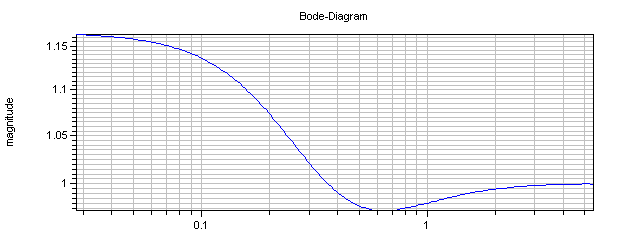

//  gives:

Inputs
