modelTestLimiterWithLag
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
The model demonstrate the corerct behavior of the LimiterWithLag.The limit are set as follows:
uMax = 0.7
uMin = 0.3
and the time lag are set as follows:
LagMax = 2 s
LagMin = 3 s

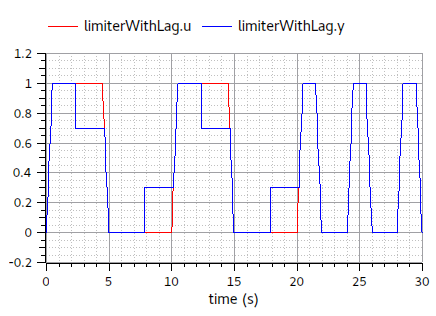

The signal source is a trapezoid which change the frequeny at t = 20, it is possible to see that the limiter becomes active only in case of low frequency variations of the input signal.
Components
| Type | Name | Default | Description |
|---|---|---|---|
| PowerGrids.Controls.LimiterWithLag | limiterWithLag | ||
| Modelica.Blocks.Sources.Trapezoid | LfSignal | ||
| Modelica.Blocks.Sources.Trapezoid | HfSignal | ||
| Modelica.Blocks.Math.Sum | sum |
