modelTransmissionLine

Modular model of an electrical transmission line
Diagram of TransmissionLine

Information

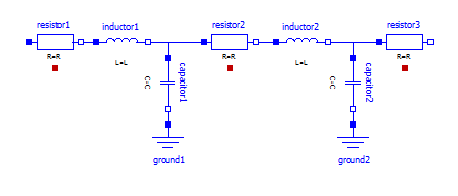

In the figure, it is given an example of the transmission line that is implemented which consists of a resistor, an inductor and a capacitor within each segment. Moreover, transmission line is implemented by connecting each segment together. In the figure, resistor1, inductor1 and capacitor1 describes the first segment and it is connected to second segment which has the same components as the first segment and so on. It transmits the electrical signal from a source to a load.

Parameters Comment
N number of segments
r resistance per meter
l inductance per meter
c capacitance per meter
length length of the transmission line

Parameters

TypeNameDefaultDescription
IntegerN1number of segments
Realrresistance per meter
Reallinductance per meter
Realccapacitance per meter
Reallengthlength of tranmission line

Connectors

TypeNameDefaultDescription
Analog.Interfaces.Pinpin_p
Analog.Interfaces.Pinpin_n
Analog.Interfaces.Pinpin_groundpin of the ground

Components

TypeNameDefaultDescription
SIunits.Voltagevpgvoltage of pin p of the transmission line
SIunits.Voltagevngvoltage of pin n of the transmission line
SIunits.Currentipin_pcurrent flows through pin p of the transmission line
SIunits.Currentipin_ncurrent flows through pin n of the transmission line
Analog.Basic.Groundgroundground of the transmission line
Analog.Basic.Inductor[N]LN inductors
Analog.Basic.Capacitor[N]CN capacitors
Analog.Basic.Resistor[N]RN resistors
