modelScenario_5

Information

References:

1. Cellier, F.E. (1991), Continuous System Modeling, Springer-Verlag, New York, ISBN: 0-387-97502-0, 755p.
2. Forrester, J.W. (1971), World Dynamics, Pegasus Communications, 160p.

Simulate the model across 233 years with time reversal starting at year 200, i.e., we simulate the world model forward through time from the year 1900 until the year 2100, and then backward through time from the year 2100 until the year 2067. For this experiment, you need to set the simulation accuracy to 1e-10.

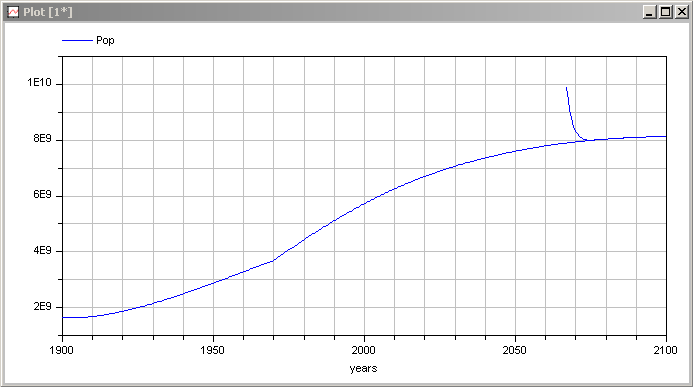

Plot the simulated world population against the calendar years.

You shall notice that time reversal in the world model is numerically problematic. The simulation is numerically unstable in backward direction. The time-reversed model simulates correctly for a few years, but as numerical errors get the trajectory away from its designed path, the backward trajectory starts diverging quickly from the forward trajectory.
