modelTestDowcal100E
Test Dowcal100E Medium model
Extends from Modelica.Icons.Example.
Information

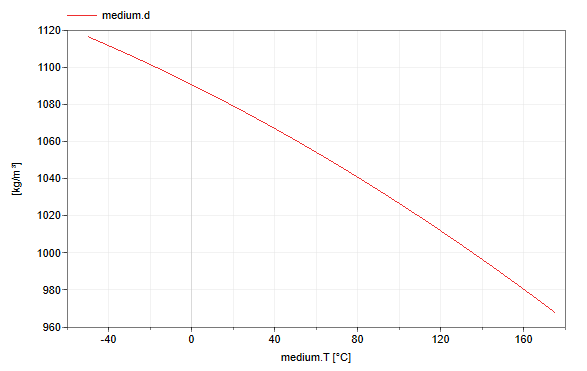

Density

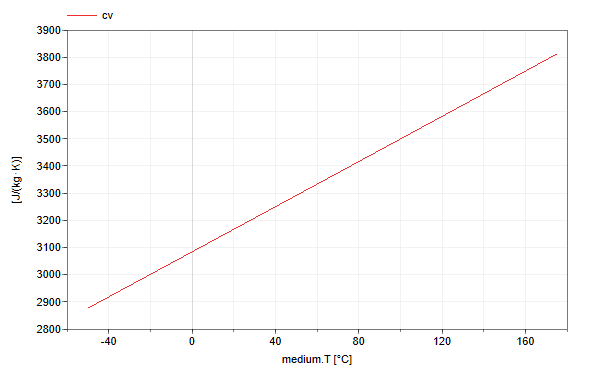

Heat capacity

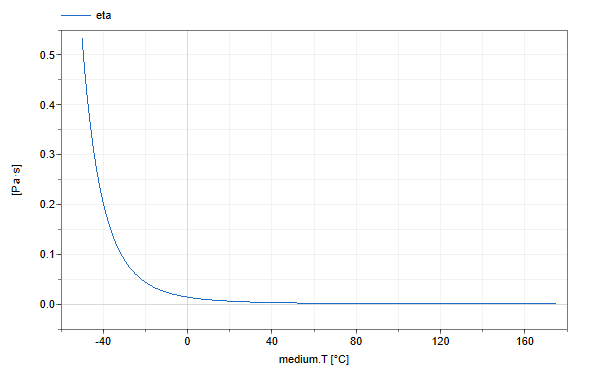

Dynamic viscosity (about half of Dowcal100)

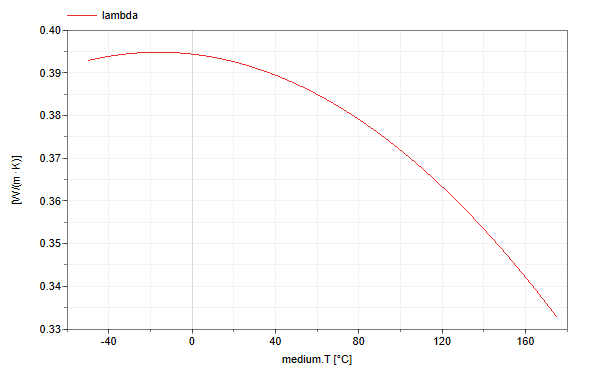

Thermal conductivity
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Medium.BaseProperties | medium | ||
| Medium.DynamicViscosity | eta | Medium.dynamicViscosity(medium.state) | |
| Medium.ThermalConductivity | lambda | Medium.thermalConductivity(medium.state) | |
| Medium.SpecificEntropy | s | Medium.specificEntropy(medium.state) | |
| Medium.SpecificHeatCapacity | cv | Medium.specificHeatCapacityCv(medium.state) | |
| Medium.SpecificInternalEnergy | u | Medium.specificInternalEnergy(medium.state) | |
| Medium.SpecificEnthalpy | h | Medium.specificEnthalpy(medium.state) | |
| Medium.Density | d | Medium.density(medium.state) |
Contents
| Name | Description |
|---|---|
| Medium | Medium model (Dowcal100E) |
