recordStratos30slash1to4

Pump coefficients of a Wilo Stratos 30/1-4 pump

Extends from ThermofluidStream.Processes.Internal.CentrifugalPump.Coefficients.GenericPump.

Information

Data sheet of Wilo Stratos 30/1-4

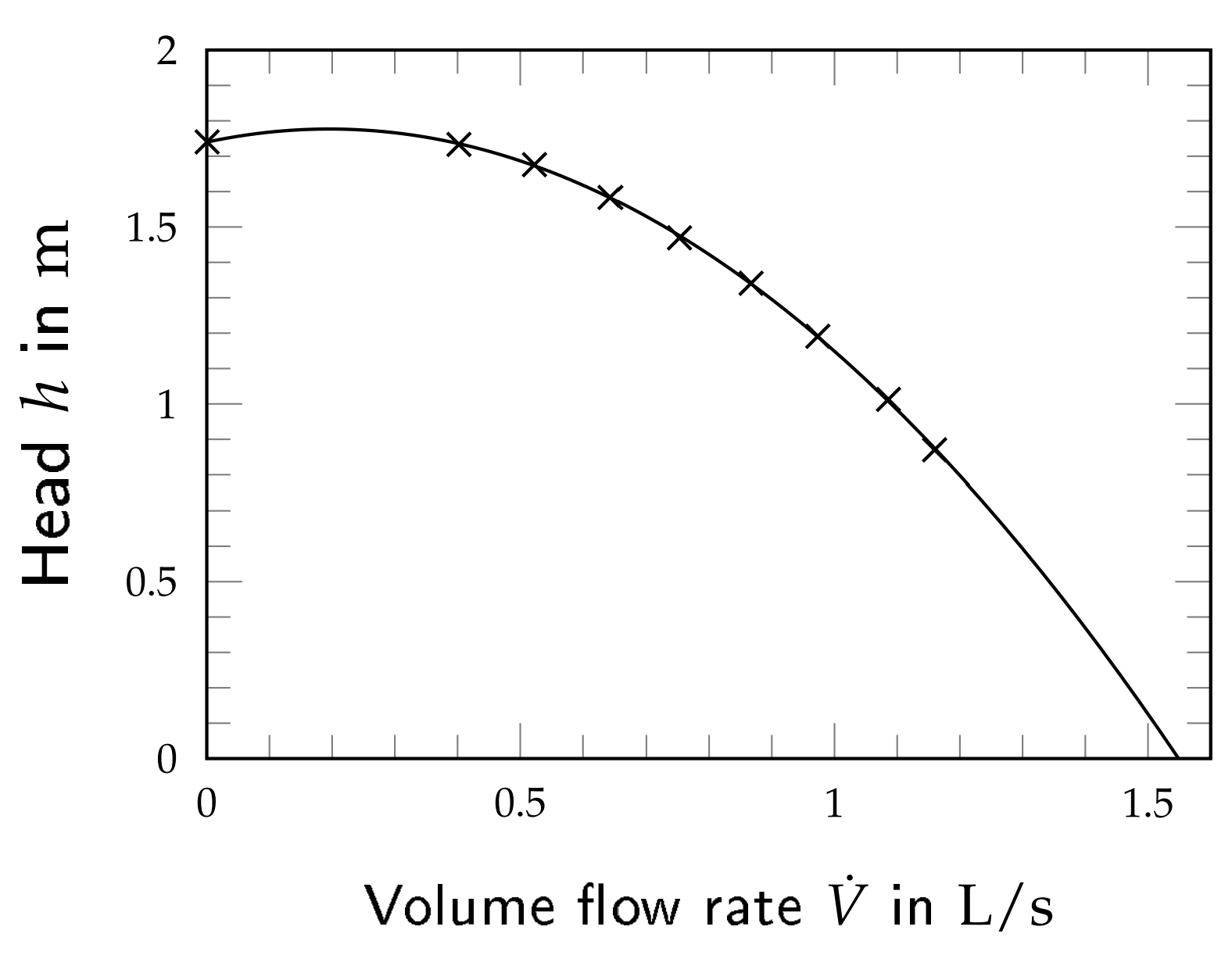

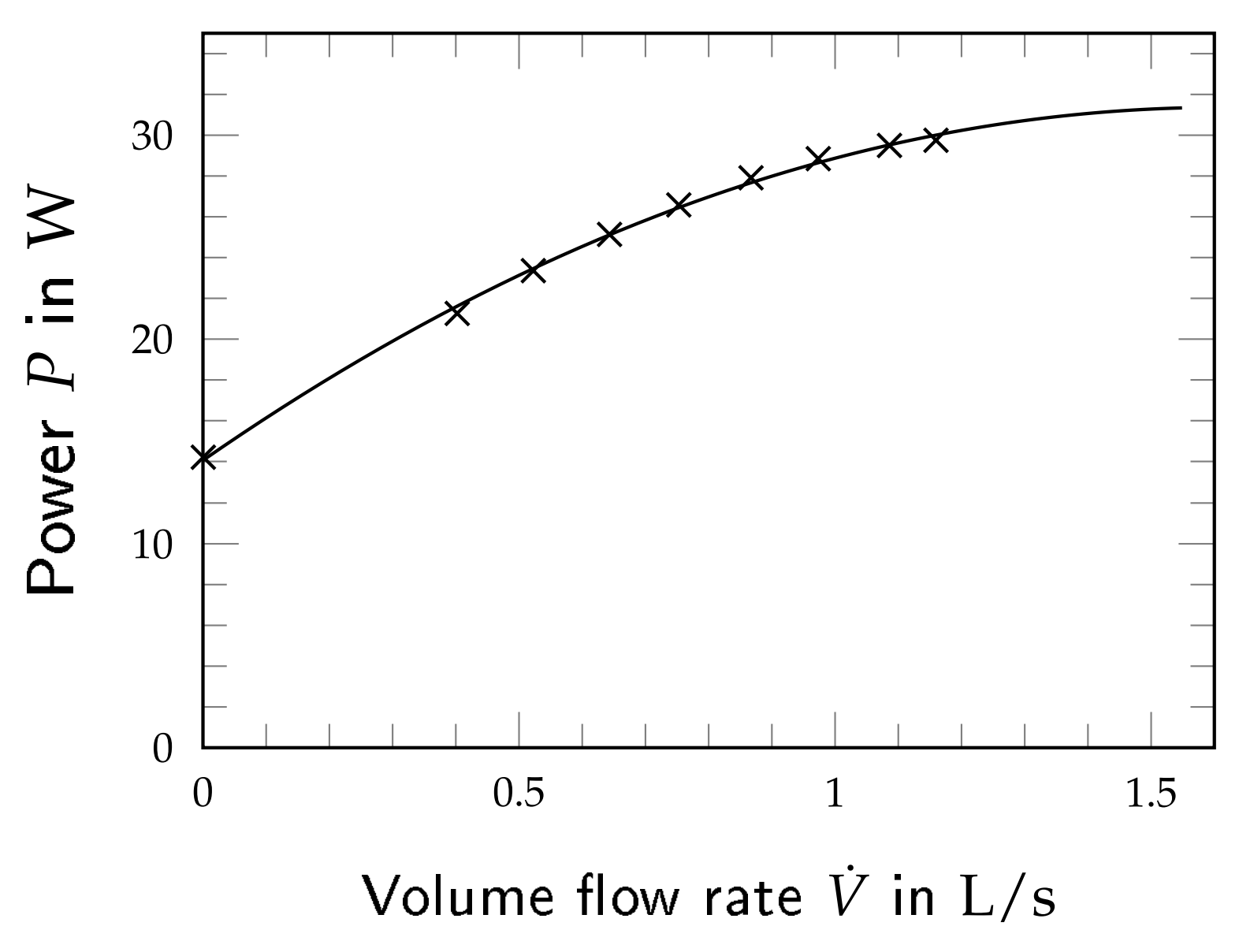

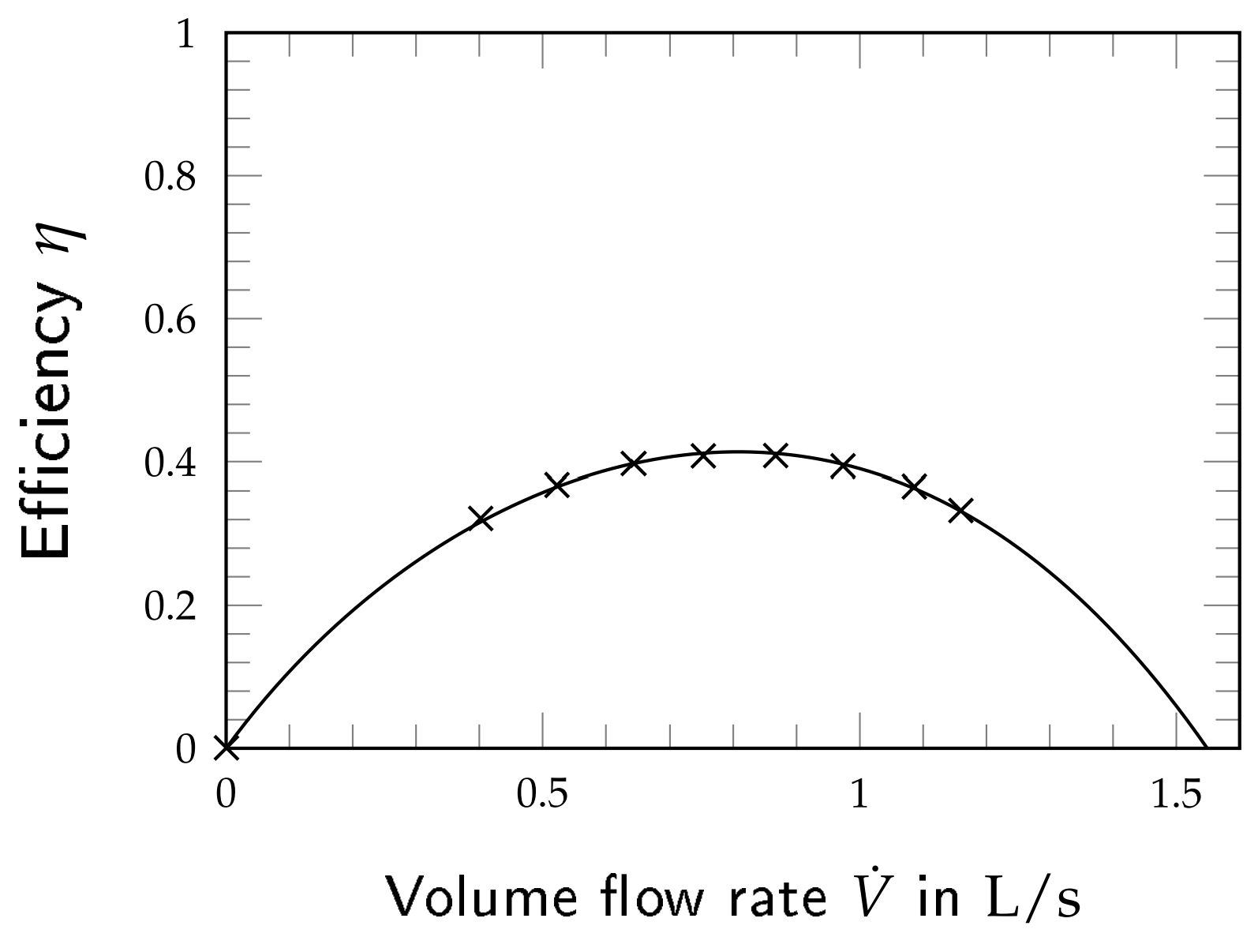

Wilo Stratos 30/1-4 head Wilo Stratos 30/1-4 power Wilo Stratos 30/1-4 efficiency

Revisions

  • June 17, 2024, by Raphael Gebhart:
    Transferred from Buildings Library to ThermofluidStream Library.
  • March 29, 2023, by Hongxiang Fu:
    Deleted angular speed parameters with the unit rpm. This is for IBPSA, #1704.
  • October 14, 2021, by Hongxiang Fu:
    Rewrote the statements using use_powerCharacteristic to support the implementation of Buildings.Fluid.Movers.BaseClasses.Euler. This is for #2668.
  • February 17, 2016, by Michael Wetter:
    Updated parameter names for #396.
  • December 12, 2014, by Michael Wetter:
    Added defaultComponentPrefixes and defaultComponentName annotations.
  • April 22, 2014 by Filip Jorissen:
    Initial version
