modelPartialConductionElement
Extends from Interfaces.SISOFlow.
Information
This model is an element with a fixed volume (fig. 1). The mass in the volume is assumed quasi-stationary (statically computed with volume and density), and the fore massflow is coupled to the rear massflow. Because of this the ConductionElement cannot be used as a loop breaker. The advantage is that multiple ConductionElements can be put behind each other without worrying about oscillations or fast eigenvalues between their masses. The ConductionElement implements equations for conservation of mass and energy for the fluid mass contained within it.
Initialization can be done by initial temperature, initial enthalpy or by using the inlet state.
The ConductionElement makes different assumptions:
-
Quasistationary mass:
m_flow_rear = - m_flow_fore & M = rho * V (this assumption violates the conservation of mass for changing densities, since the mass in the element can change although inflow and outflow are the same)
der(H) = der(M*h) = M*der(h) (This assumption violates the conservation of energy for changing densities, since then the mass M of fluid in the element is no longer constant) -
Neglection of der(p) in the energy equation
V*der(p) = 0 (this assumption violates the conservation of energy for changing pressures. For a noticeable difference in the testcase the der(p) must be in the order of 1e5 Pa/s).
This assumption can be turned off by setting neglectPressureChanges=false (true by default) in the Advanced tab. This option requires the fore and rear input pressures to be smooth. - Due to stability reasons the component exhibits a different behavior for negative massflows (see fig. 2). For negative massflows, the ingoing and outgoing massflows get decoupled from the fluid remaining in the component. The fluid exits with the same state as it enters, and the heatport is connected to the fluid left in the volume (which is decoupled to the mass flowing).
Due to these assumptions minor violations in the global energy conservation can occur. With the flag enforce_global_energy_conservation in the "Advanced" tab is set true (Default: false), long-term energy storage in the ConductionElement is sacrificed to hold global energy conservation.

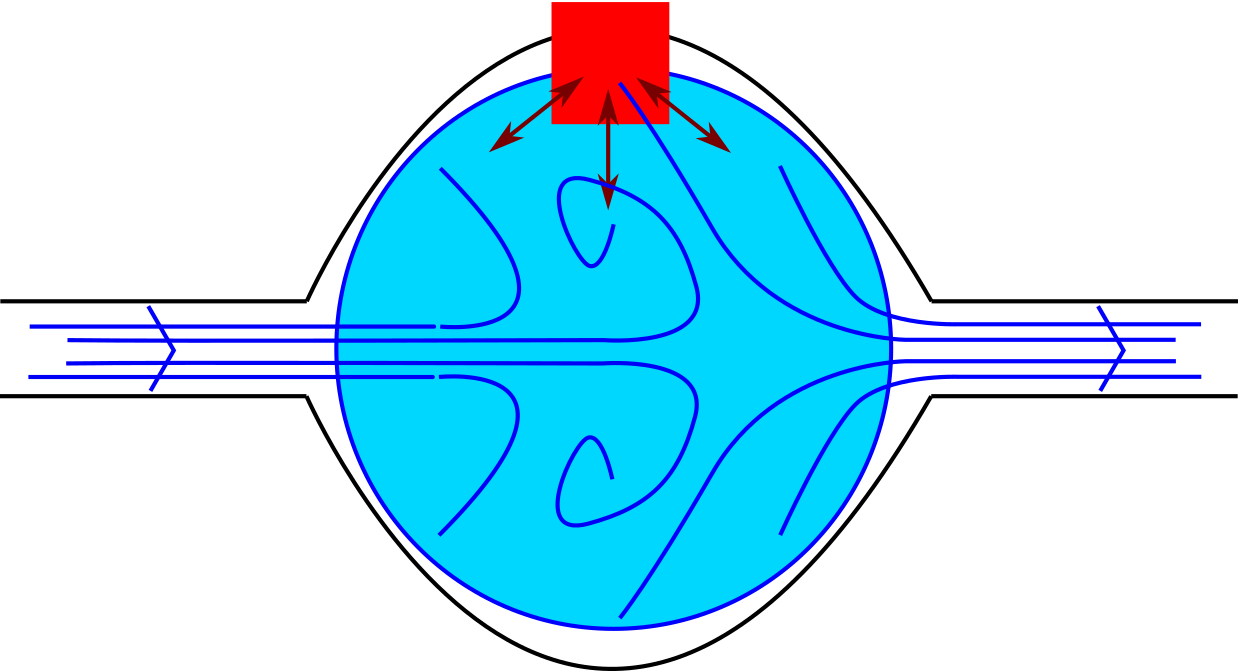

fig. 1: positive massflow model

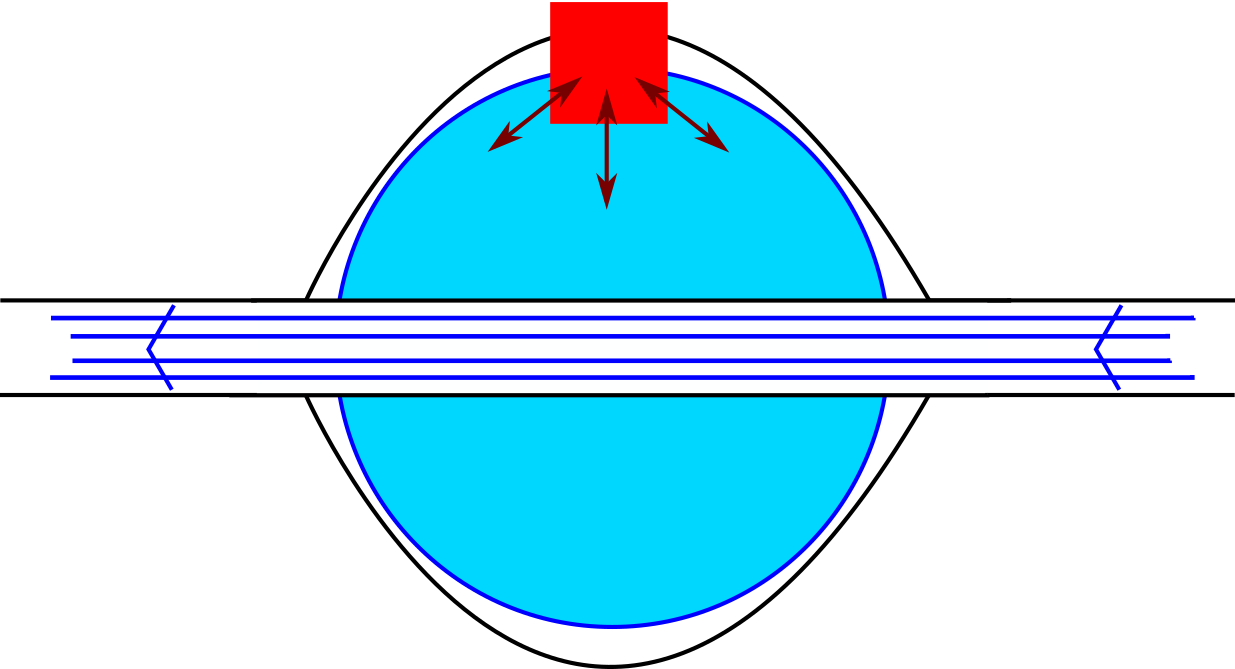

fig. 2: negative massflow model
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Volume | V | 0.001 | Volume |
| Initialization › Specific enthalpy | |||
| Internal.InitializationMethodsCondElement | init | ThermofluidStream.Processes.Internal.InitializationMethodsCondElement.inlet | Initialization for specific enthalpy |
| Medium.Temperature | T_0 | Medium.T_default | Initial Temperature |
| Medium.SpecificEnthalpy | h_0 | Medium.h_default | Initial specific enthalpy |
| Advanced | |||
| Medium.Density | rho_min | dropOfCommons.rho_min | Minimal density |
| Boolean | neglectPressureChanges | true | =true, if pressure changes are neglected |
| SI.MassFlowRate | m_flow_assert | -dropOfCommons.m_flow_reg | Assertion threshold for negative massflows |
| Advanced › Global energy conservation | |||
| Boolean | enforce_global_energy_conservation | false | = true, if global conservation of energy is enforced |
| Advanced › global energy conservation | |||
| SI.Time | T_e | 100 | Time constant for global conservation of energy |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a | heatPort | ||
| Medium.SpecificEnthalpy | h | Volume? specific enthalpy | |
| Medium.ThermodynamicState | state | Medium.setState_phX(p_in, h, Xi_in) | Volume thermodynamic state |
| Medium.Temperature | T | Medium.temperature(state) | Volume temperature |
| SI.ThermalConductance | k | Thermal conductance | |
| SI.Energy | deltaE_system | Energy difference between m_flow*(h_in-h_out) and Q_flow | |
| SI.Mass | M | Mass (of the volume) |
