functionramp

Ramp response plot of a discrete zeros-and-poles transfer function

Extends from Modelica_LinearSystems2.Internal.PartialPlotFunction (Interface of a plot function).

Information

DiscreteZerosAndPoles.Plot.ramp(dzp)
   or
DiscreteZerosAndPoles.Plot.ramp(
  dzp,
  tSpan,
  x0,
  columnLabels,
  defaultDiagram=Modelica_LinearSystems2.Internal.DefaultDiagramTimeResponse(),
  device=Modelica_LinearSystems2.Utilities.Plot.Records.Device())

Description

This function plots the ramp response of a zeros-and-poles transfer function. It is based on timeResponse.

Example

  DiscreteZerosAndPoles p = Modelica_LinearSystems2.DiscreteZerosAndPoles.q();
  DiscreteZerosAndPoles dzp=(q^2 - 1.5*q + 0.6)/( (q - 0.8)*(q - 0.75) )
  dzp.Ts = 0.1;

algorithm

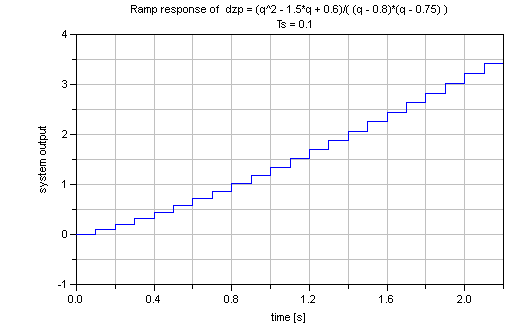

  Modelica_LinearSystems2.DiscreteZerosAndPoles.Plot.ramp(dzp)
  //  gives:

See also

impulse, step, initialResponse

Inputs

TypeNameDefaultDescription
DiscreteZerosAndPolesdzp
RealtSpan0Simulation time span [s]
Plot.Records.DiagramdefaultDiagram (from PartialPlotFunction)Default diagram layout
Plot.Records.Devicedevice (from PartialPlotFunction)Modelica_LinearSystems2.Utilities.Plot.Records.Device()Properties of device where figure is shown
